Middle LED bulb tube light 52 feeder SMT pick and place machine

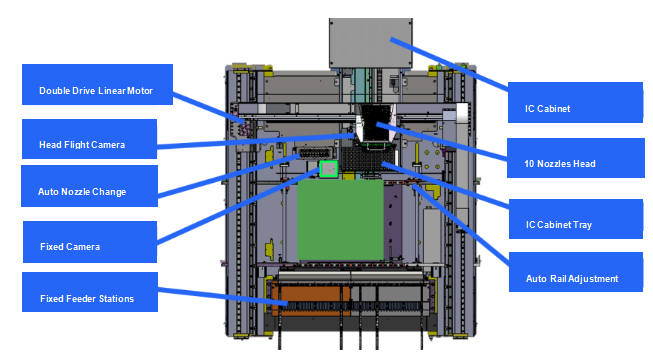

Machine main features
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear
motor
2.Flexible PCB handling capabilities, multi-station,multi-material
mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feeder
● Single gantry, 10 splines.
● Maximum PCB board: 500*450mm, minimum 50*50mm.
● Optional IC cabinet,ANC, flexible production
● Flexible wiring is achievable through modular placement
| Model | YT10S |
| Dimension |
| Length | 1480mm |
| Width | 2020mm |
| Height | 1650mm |
| Total Weight | 2380kg |
| PCB |
| PCB Length Width | Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate
placing |
| O.S. |
| System | Windows7 |
| Software | R&D independently |
| Display | LED monitor |
| Input Device | Keyboard, Mouse |
| Vision System |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm(Other height can be customized) |
| Mounting Speed | 48000 CPH(Under best condition) |
| Components | 0201~15MM packaging material and IC material(Optional fixed camera
for 0201~35*35MM), Other component size can be customized |
| Components Space | 0.2mm |
| No. of Feeders Station | 52 PCS (104 PCS option) |
| No. of nozzles | 10 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |
Market
Our products had exported to more than 30 countries and regions,
including South Korea, India, Vietnam, Tunisia, Egypt,Turkey,
Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL,
RangDong, UNISTAR, and so on.
Packages Packing in film package and foam cotton, and covering vacuum bag
within sturdy wooden boxes.
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the
machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to
prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export
wooden boxes, to ensure that the delivered product is good.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be
repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON,
so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in
different cities every year, at the same time, we will visit local
clients and support our service and collect feedback on customer
suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And
share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also
have site in Egypt, Turkey that can provide service timely with our
engineers.
According to your needs, dedicated senior engineer will come to
your factory for free install and training you how to operate the
machine.
FAQ
Q.What kind of machine you have?
A.We are the high speed SMT pick and place machine manufacturer,
and also we build our brand to more efficient and convenient
machine for our customers. We have multifunctional type, honor
series, value series with high precision and high productivity.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many
factors, that related to the number of the components, the time to send PCB
board and receive the board that will have influence on the speed when in
production, and is decide for the actual products and needs.
