10 nozzle integrated head LED display SMT pick and place machine
Machine main features
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear
motor
2.Flexible PCB handling capabilities, multi-station,multi-material
mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feeder
Machine main parameter
| Model | YT10S |
| Dimension |
| Length | 1480mm |
| Width | 2020mm |
| Height | 1650mm |
| Total Weight | 2380kg |
| PCB |
| PCB Length Width | Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate
placing |
| O.S. |
| System | Windows7 |
| Software | R&D independently |
| Display | LED monitor |
| Input Device | Keyboard, Mouse |
| Vision System |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm(Other height can be customized) |
| Mounting Speed | 48000 CPH(Under best condition) |
| Components | 0201~15MM packaging material and IC material(Optional fixed camera
for 0201~35*35MM), Other component size can be customized |
| Components Space | 0.2mm |
| No. of Feeders Station | 52 PCS (104 PCS option) |
| No. of nozzles | 10 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |
Machine application
Market
ETON company which not only provide our high speed SMT machine in
Chinese market, but also overseas market to let our customer enjoy
one site service, efficient production and low consumption.
Our Exhibitions
Our company has participated in various exhibitions in foreign
countries, including India Mumbai Exhibition, India Delhi
Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan
Exhibition, etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost
of shipping which is easy for clients to accept the arrival time of
the goods.

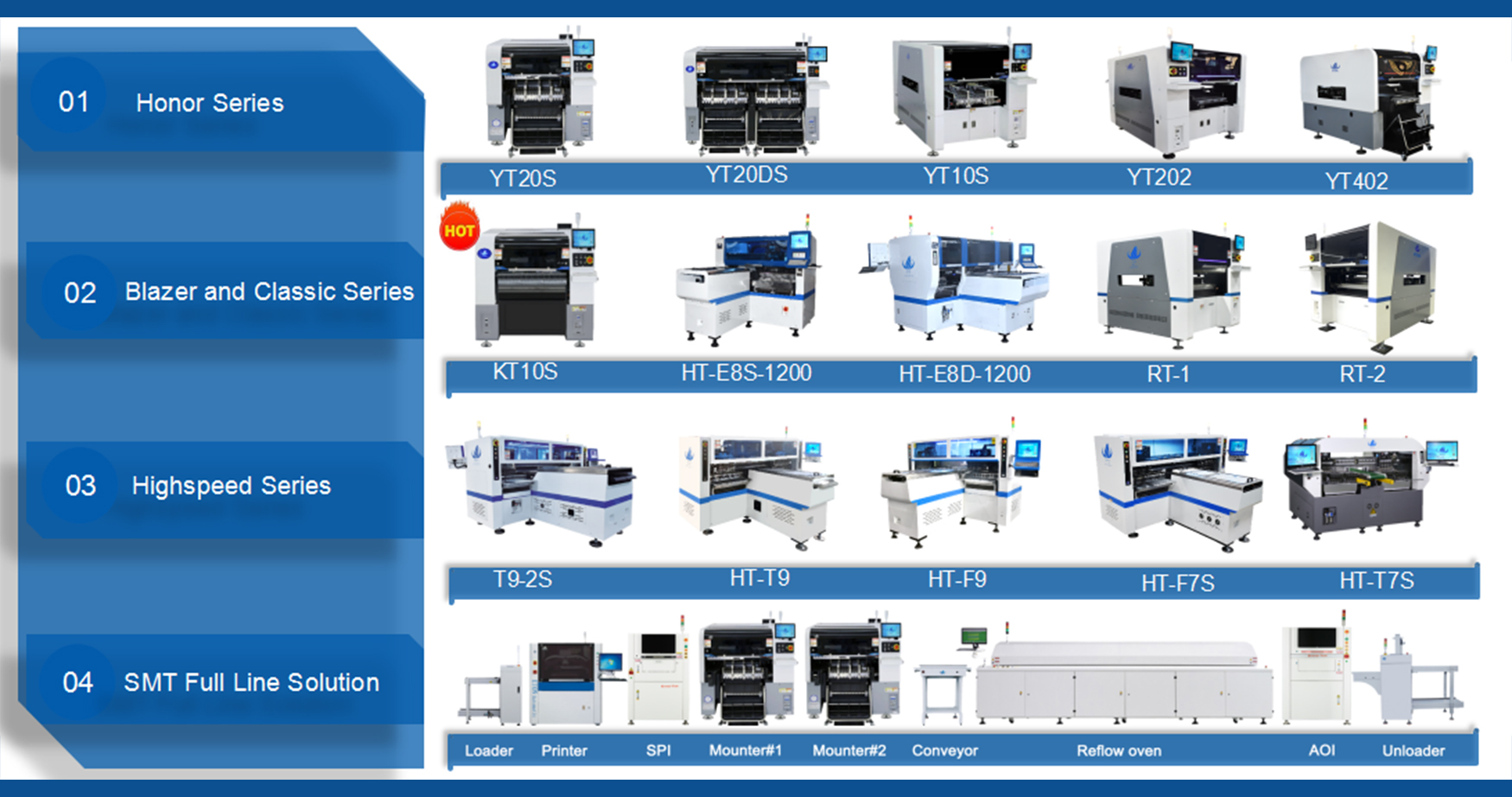

Related machine
ETON is a leading SMT high speed pick and place machine
manufacturer in China, and we also provide whole line solution with
peripheral devices as stencil printer, conveyor, glue dispenser,
transitional and reflow oven etc.
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the
part of EXW which is cheaper and convenient factor as a suitable
price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a
number of intellectual property technologies, including 9 invention
patents, 112 practical patents, 12 software copyrights, with our
won R&D department for production and inspection. And awarded
as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our
high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest
you to have 1 hour or 2 hours off per day.
