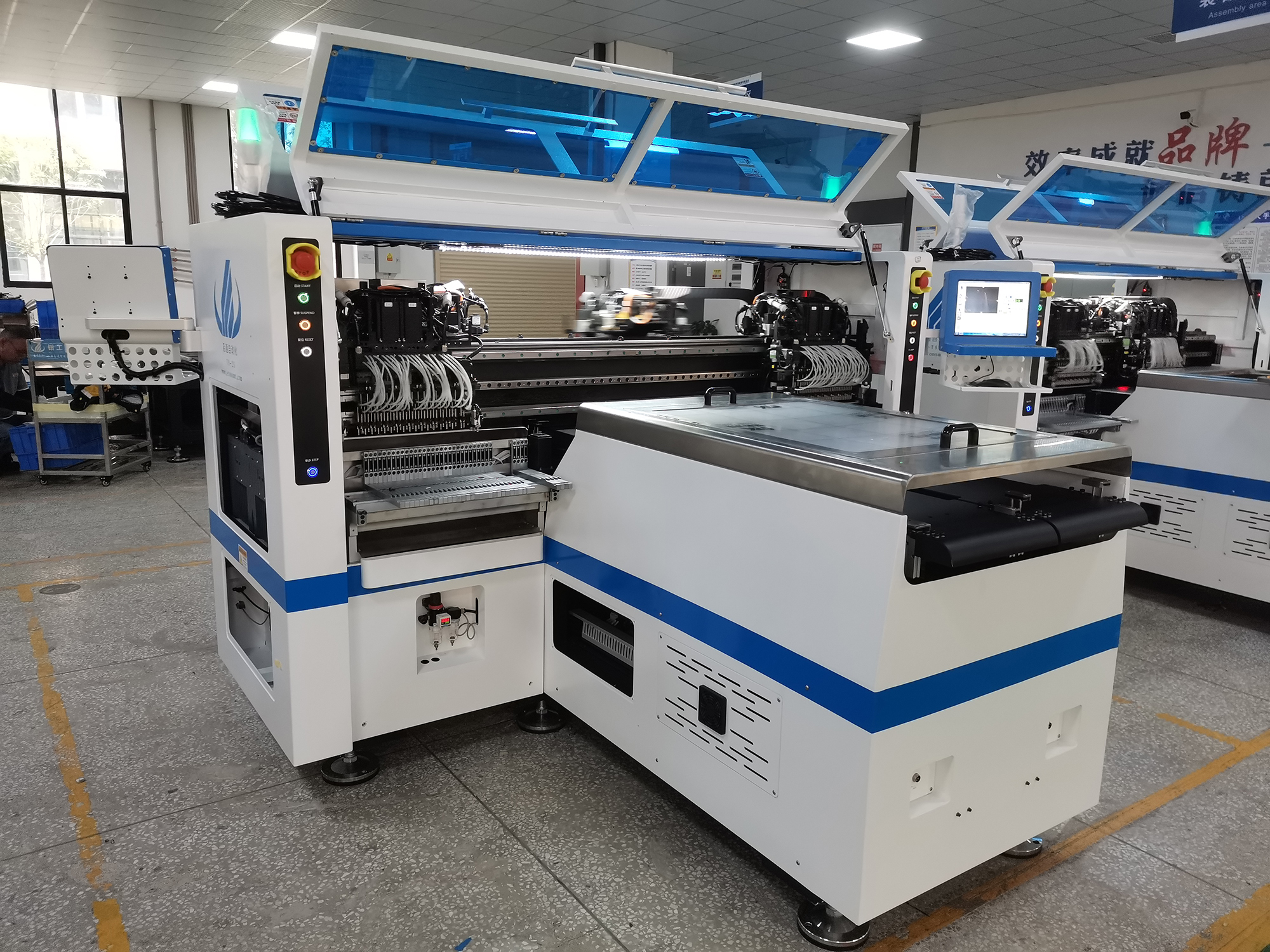

    Hot Type 200m Long Strip Production SMT Four Module Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : T9-2S
    Certification : CE,CCC,SIRA,ISO
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Hot Type 200m Long Strip Production SMT Four Module Machine

    Hot type 200m long strip production SMT four module machine


    Description

    Feature ① HIGH PRODUCTIVITY

    ETON Tech Adjustable Placement Head

    Component picking position can be adjusted according to PCB pad pitch, min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor, capacitor,bridge rectifier etc. wide component range.

    • Unique Design Component Leaking Detection And Individual Component Refill Function

    Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.

    • Ultra-high-speed-Capacity

    The placement head adopt the method of two times picking and once placing.The placement time greatly minimizedwith the improved placement way, excellent optimum capacity reach 500000CPH.

    Feature ② FLEXIBLE PRODUCTION


    • Adjust the conveying platform according to various roll to roll strip,range 250±10mm,the max length range is

    1M per cycle.

    • The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to

    realize the function of two time picking and once placing.The range of feeding station is double of placement head,can produce four kinds of materials at the same time.

    • Intelligent electric feeder,supporting high-speed machine series.

    ModelT9-2S
    Dimension
    Length3454mm
    Width3035mm
    Height1777mm
    Total Weight3100kg
    PCB
    PCB Length Width250 (±10mm)*Any Length
    PCB Thickness0.1-0.5mm
    PCB ClampingVacuum adsorption, cylinder clamping, track width adjustable
    Mounting wayGroup picking and group placing
    Vision System
    No. of Camera10 sets (Digital camera)
    Vision alignment+Mark correction
    Mounting Precision±0.05mm
    Mounting Height≤5mm
    Mounting SpeedDouble side:500000CPH,single side:250000CPH(Optimum speed)
    ComponentsLED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc.
    Power380AC 50HZ
    Power Consumption9.6 KW
    Operating Environment23℃±3℃
    Conveyor transmissionMax length :1000 mm
    Transmission Speed>500mm/sec
    Transmission DirectionSingle ( left—>right or right—Heft)
    Transmission ModeOnline drive
    Position ModeOptical
    Air supply0.4-0.6mpa (4-6kgf/cm2)150N/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 2 setIndependent research and development by ETON
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor + Servo motor
    Feeding System
    No. of Feeder stationDouble side:136PCS(single side:68PCS)
    No.of headDouble side:136PCS(single side:68PCS)
    Feeding wayIntelligent electric feeder with double motor

    Certificates


    Service

    Maintenance period 1 year

    One year warranty during warranty any parts that need to be repaired and replaced will be free.


    Software and hardware lifetime maintenance

    Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.


    Visit customers regularly and gather information

    Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.


    Provide the latest information about technology and equipment

    We give professional technology suggestions to our clients. And share the updated news with our clients


    On-site service

    We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.

    According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
