    High Speed Automatic SMT Machine Chip Mounter ETON YT10S SMT Pick And Place Machine For SMT Line

    Ask Lasest Price
    Brand Name : ETON
    Model Number : YT10S
    Certification : ccc,ce,rise
    Price : FOB USD 33000~43000/sets
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    High Speed Automatic SMT Machine Chip Mounter ETON YT10S SMT Pick And Place Machine For SMT Line

    Full-auto SMT Production Line PCBA Prodution Line SMT machine

    SMT line Solution

    Full automatic SMT linculding those machines:
    SMT pick and place machine,automatic/semi-auto stencil printers machine,reflow oven
    loader/unloader machine,smt conveyor,AOI/SPI,Transform conveyor,etc


    SMT Line machine detarils



    SMT LINE Process:


    Stracking Loader

    ModelET-46BLD
    DimensionL600*W650*H1200 mm
    Board Size50*50-530*460 mm
    Board loadingApprox 10 sec
    Process height900 ± 20 mm
    Flow directionL→R or R→L
    Board thicknessMin 0.6mm
    Step distance20 mm or Customized
    Board capacityCustomized
    Weight400pcs
    Power requirement200kg
    Air requirement0.4-0.6 Mpa;Max 30L/min

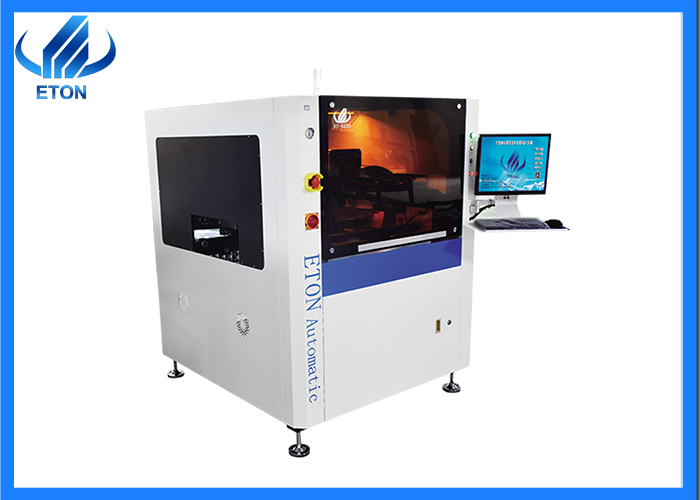

    Automatic Stencil Printer



    ModelET-5235

    PCB Size

    MAX:520*350mm MIN:50*50mm

    PCB Transfer Overhead Height

    10mm

    Control Method

    PC Control

    Squeegee Speed

    6-300mm/sec

    Power Input

    AC:220±10%, 50/60HZ 1Φ 3KW


    Conveyor



    ModelET-C600
    Steel frame structure, rail lengthL=600 mm
    Width adjustment range50~350 mm
    PCB size500*350 mm
    Transmission height920±20
    Transmission5MM flat belt conveyor
    SpeedAdjustable from 0.5 to 9 m/min
    MotorOne set of 25 W stepper motor
    ControlIndustrial control panel
    Transmission DirectionSingle (left → right )
    One section of control, two Sensors

    Pick and Place Machine



    ModelKT10S
    Dimension
    Length1490mm
    Width2020mm
    Height1650mm
    Total Weight2080kg
    PCB
    PCB Length WidthMax:500*450mm(1200*450 option) Min:50*50mm
    PCB Thickness0.5-5mm
    PCB ClampingCylinder clamping, track width adjustable
    Mounting ModeGroup picking and separate placingseparate picking and separate placing
    O.S.
    SystemWindows7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input DeviceKeyboard, Mouse
    Vision System
    No. of Camera1 PCS (Head flight vision camera)
    1PCS Mark camera
    Mounting PrecisionCHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ)
    Mounting Height≦16mm
    Mounting Speed48000 CPH(Under best condition)
    ComponentsLED , capacitors, resistors, shaped components, etc.
    Components Speed0.2mm
    No. of Feeders Station52 PCS (104 PCS customize, IC tray/nozzle change option)
    No. of nozzles10 PCS
    Power220AC 50HZ
    Power Consumption1.5kw
    Operating Environment23℃±3℃
    Transmission Speed>1000mm/sec
    Transmission DirectionSingle(left→ right or right→ left)
    Transmission ModeOnline drive
    Position ModeOptical
    Gas consumption0.4-0.6mpa (4-6kgf/cm2)600N/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 1 setIndependent research and development by ETON
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor
    Feeding wayIntelligent feeder with double motor
    Production management MES system interfaceCustomized

    8 Zones Reflow oven



    ItemET-UL390 loader machine
    DimensionL2200*W920*H1200mm
    FrameSpecial aluminum profile guide rail and special thousand bird type plastic chain
    Lift120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    StructurePneumatic clamp structure
    0.9M long push plate Conveyor1 set
    Maximum size of PCBL530*W390
    Turnover box specifications(L)535*(W)460*(H)565mm
    DirectionLeft to right / right to left
    Lift platform pitch selection10,20,30,40
    ControllerMitsubishi PLC programmable controller
    Closing functionAutomatic
    Operation control panelDisplay control true color touch screen
    power supply220V 50HZ
    Gas source0.4-0.6MPa
    No. of Full load storage board50 pcs
    Electric control box1 set

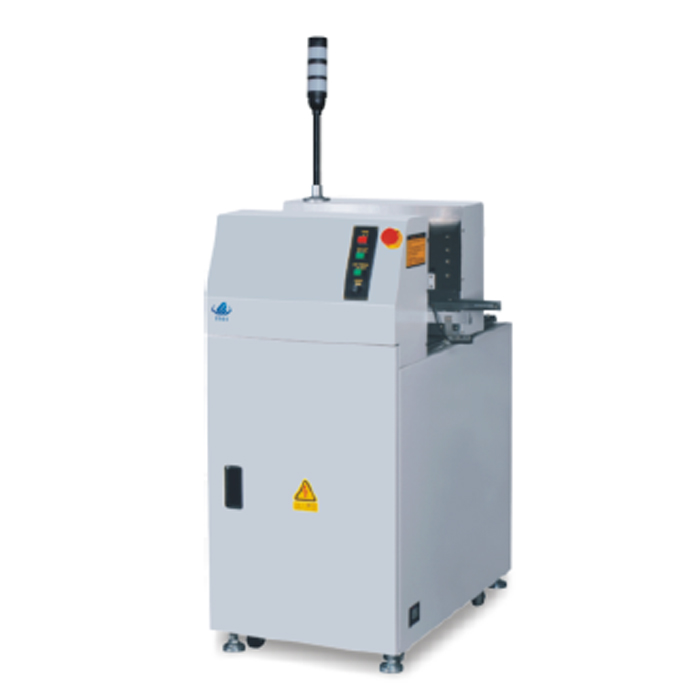

    Automatic Un-loader



    ItemET-UL390 loader machine
    DimensionL2200*W920*H1200mm
    FrameSpecial aluminum profile guide rail and special thousand bird type plastic chain
    Lift120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    StructurePneumatic clamp structure
    0.9M long push plate Conveyor1 set
    Maximum size of PCBL530*W390
    Turnover box specifications(L)535*(W)460*(H)565mm
    DirectionLeft to right / right to left
    Lift platform pitch selection10,20,30,40
    ControllerMitsubishi PLC programmable controller
    Closing functionAutomatic
    Operation control panelDisplay control true color touch screen
    power supply220V 50HZ
    Gas source0.4-0.6MPa
    No. of Full load storage board50 pcs
    Electric control box1 set
