Machine main features
Integrated Placement Head
Lightweight, head is integrally formed, the 10 sets of Z axes are
independently controlled by modular magnetic linear motor, which
greatly improves the speed, accuracy and stability
Precision Corner System
The modular corner system independently controls the angle of each
component to ensure high-precision placement. 10 suction nozzles
per head, with a center distance of 16mm.
Vacuum Sensing Device
Each placement head with independent detection function, which
improves the stability of the equipment and the reliability of the
product.
Ultra-high-speed Capability
Adopting high-end magnetic linear motors and a multi-function
Modular head, the placement capability has increased by 25%
compared to traditional machines,with an optimum speed reaching
98000CPH
Machine main parameter
| Model | YT20S |
| Dimension |
| Length | 1480mm |
| Width | 2680mm |
| Height | 1650mm |
| Total Weight | 2380kg |
| PCB |
| PCB Length Width | Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate
placing |
| O.S. |
| System | Windows7 |
| Software | R&D independently |
| Display | LED monitor |
| Input Device | Keyboard, Mouse |
| Vision System |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm (Other height can be customized) |
| Mounting Speed | 98000 CPH(Under best condition) |
| Components | 0201~12MM packaging material and IC material(Optional fixed camera
for 0201~35*35MM),Other component size can be customized |
| Components Space | 0.2mm |
| No. of Feeders Station | 104 PCS |
| No. of nozzles | 20 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |

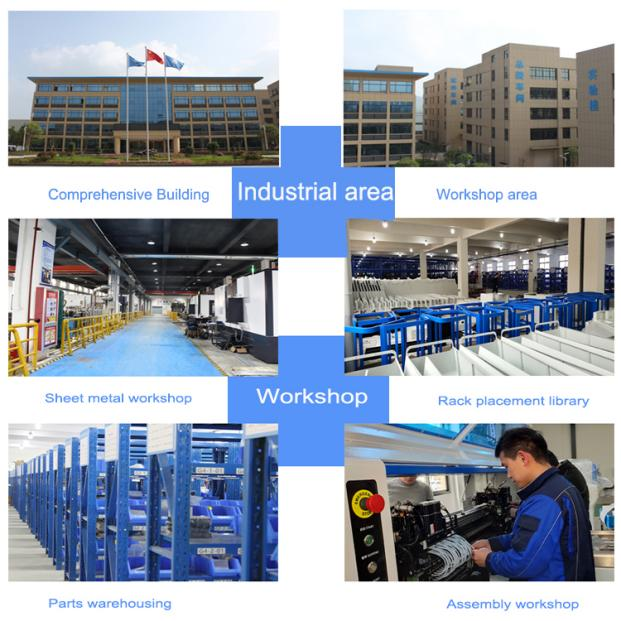

Company Profile
Exhibition
We attend many exhibitions every year. Not only in China, India
Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt
Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also
send machines to India, Korea, UK, Russia, Egypt, Turkey,
Vietnam,Japan, Australia, Poland, etc more than 20 countries.
Working with ETON is guaranteed, let's light up your business!
Shipping and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
Vacuum packaging + wooden box packaging, safe and reliable
FAQ
Q1.Who is your client?
A: We have exported machine to different countries, such as India,
Egypt, Korea, Turkey, Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client, In India such as
RK, Surya, skyquad are our client.
Q2. Machine is easy to operate?
A: Machine is easy to operate, usually 3 to 5 days training of
operating is enough.
Q3. How is the breakdown rate of machine?
A: Our machine is very stable, the breakdown rate is less than
0.001.
Q4. What is your machines quality?
A: We have our own industrial park. There are production centre and
R&D centre and quality inspection centre to guarantee the
machines quality.
