    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

    Ask Lasest Price
    Brand Name : ETON
    Model Number : YT20S-II
    Certification : CE,CC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

    YT20S Pick And Place Machine

    High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

    Integrated Placement Head

    High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

    Vacuum Sensing Device

    Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.

    Precision Corner System

    The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.

    Vision System

    The integrated high-speed and precise flying recognition camera enhances recognition accuracy

    SMT Line
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    Pick and place machine
    Max PCB size: 500*300
    Optimal speed:
    Function: Mounting LED chips and resistors, IC (SMD components) on the PCB
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

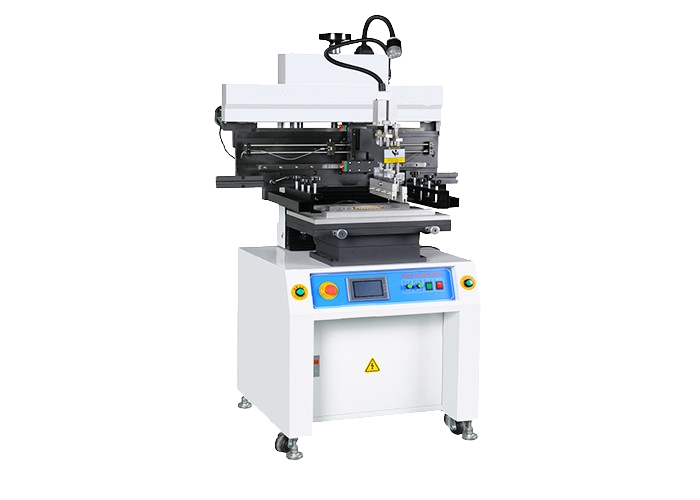

    Semi-auto stencil printer machine

    Max PCB size:600*350mm
    Function: Printing solder paste on FPCB
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

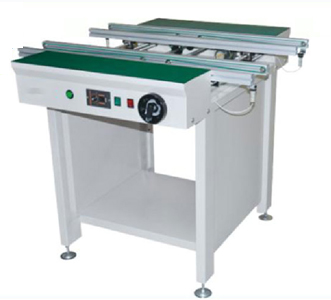

    Double rail conveyor

    Max PCB size: 500*300mm
    Function: Buffer the production, convey the PCBA to reflow oven, for manually check etc.
    8 Zones reflow oven machine
    Max PCB size: 450mm
    Function: Soldering the Led chip/resistor/IC/ rectifiers etc, with the PCB together by heating
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    Model
    YT20S
    Total Weight
    2380kg
    PCB Length Width
    Max:500*300mm(1200*450 option) Min:50*50mm
    PCB Thickness
    0.5-5mm
    PCB Clamping
    Cylinder clamping, track width adjustable
    Mounting Mode
    Group picking and separate placingseparate picking and separate placing
    Software
    R&D independently
    Mounting Precision
    CHIP±0.03mm QFP±0.025mm
    Mounting Height
    16mm (Other height can be customized)
    Mounting Speed
    98000 CPH(Under best condition)
    Components
    0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized
    Components Space
    0.2mm
    No. of Feeders Station
    104 PCS
    Power
    220AC 50HZ
    Power Consumption
    1.5kw

    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
    With over 20 years specializing in SMT high-speed pick and place machines, ETON is a
    leading manufacturer in the industry. Our products are exported to 30+ countries, including South Korea, India, Vietnam,
    Tunisia,Egypt, Turkey, Russia, Brazil, and more.
    ETON boasts an impressive track record with 14 invention patents, 135 practical patents, and 55 software copyrights. Pioneers in the Chinese SMT machine field, we bring over 11 years of experience and hold CCC, SIRA, and CE certificates.
    Our global presence spans South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, and beyond. ETON provides
    comprehensive SMT line solutions, including pick and place machines, reflow ovens, stencil printers, PCB conveyors, SPI, AOI, and more.
    Specializing in SMT machines for LED bulbs, DOB, lenses, panel lights, downlights, streetlights, tubes, 0.5m, 1m strip lights, etc., ETON is a top brand in China's SMT machine manufacturing.
    With a dedicated team of 500 employees, ETON takes pride in offering overseas engineers for free installation and training. Choose ETON as your reliable and experienced partner in the SMT industry.

    After sales sevice
    After sales sevice
    ETON Support
    Throughout the entire process, we offer comprehensive support:
    Pre-sale:
    1. Provide a range of equipment, including pick and place machines, stencil printers, reflow ovens, conveyors, etc.
    2. Offer SMT whole line solutions tailored to customer-specific factors such as factory layout, requirements, and products.
    On-sale:
    1. Provide real-time follow-up on the production status of the customer's machine.
    2. Keep the customer informed of production progress through videos or photos.
    After-sale:
    1. Conduct on-site free installation.
    2. Offer a one-year warranty and factory service.
    3. Schedule two regular visits to the customer per year.
    4. Provide free technical training.
    Technical Support:
    1. Deliver free technical training for operation and maintenance.
    2. Offer 7*24 hours of technical online support.
    3. Deploy local engineers in India (Delhi, Mumbai, and Daman), Turkey, and Egypt.
    This comprehensive approach ensures that our customers receive support at every stage, from pre-sale consultations to ongoing
    technical assistance and maintenance.

    FAQ
    Q. How can I look around your industrial park if I am on aboard?
    A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
    Q. Can you accept CIF as the quoted price?
    A. We usually accept EXW as the quoted price.
    Q.Whether you have professional engineers for installation of the machine in India?
    A. Yes, we have professional engineers in India with local office site in Delhi and Daman to provide considerable service to our clients.
    Q. How many components can your pick and place machine mount in a PCB board?
    A. While this is for our clients needs and the size of the PCB board.
