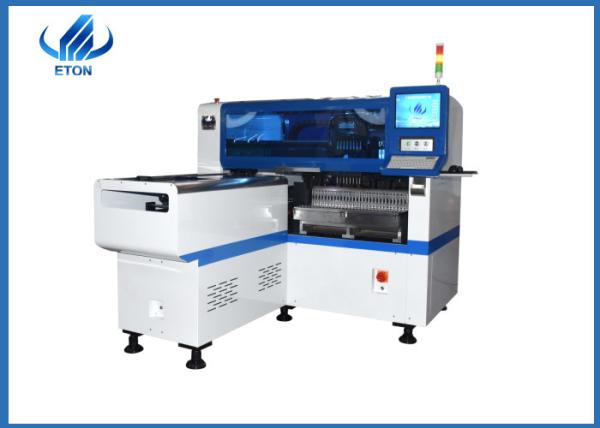

40000CPH 12 Heads Led Chip Mounter Machine For Flexible Strip Light

12 heads Led Bulb led chip mounter machine for flexible strip light

Features of led mounting machine

E8S pick and place machine is multifunctional SMD mounting machine,single model with linear magnetic motor and servo motor.with group to pick and separate placing function ,suitable a kind of smd.This module is suitable for many types of products.

Product details

1. Precision mounting head system
The mounting method of 8 nozzle heads, group picking and separate placing / separate picking and separate placing can meet the mounting requirements of different components.
Each nozzle head is independently controlled by an independent servo motor to reduce feeding and ensure mounting accuracy at a higher speed than the stepper motor.
2. High precision imported screw
The X and Y axis adopts high-end magnetic linear motor to control the screw, and the Z axis adopts panasonic servo motor to control and drive, with ultra-high acceleration performance and stable movement speed to ensure the accuracy and stability of each step of mounting.

Application
lamps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc

Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting

Mounting components:LED,5630 5050 3014 3528 2835 0402 1206 5730 lens,IC,shaped components,etc.

Application:led light industry:panel light,tube,led bulbs,street light,power driver,etc

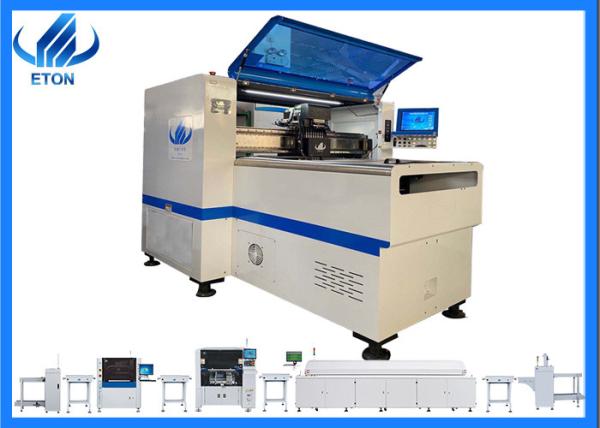

SMT production line layout

Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other.

Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.

Reflow Soldering,(Reflow Soldering) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB.

Company information

lwe will send our engineer to your factory to install machine and training freely.

lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

Remarks:

1. Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2. Delivery time: 30 days after deposit.

3. Warranty: 1 year.(including spare parts)

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
