    Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver

    Multi Functional Smd 0402 Bulb Led Making Machine For Power Driver


    LED Light high speed smd 0402 bulb led making machine for power driver


    reference configuration of led making machine
    The pick and place machine Control system: industrial computer to Ensure the stability of machine operation, precision motion control card and touch screen monitor The operation is more convenient and intelligent.


    Software system of E5D pick and place machine: Chinese and English operating system R&D independently by ETON.and the XYZ axis Driver way is magnetic linear motor and servo motor to ensure the high stability.Mounting nozzle: independently developed several types of nozzles.Sliding device: precision screw rod and linear guide rail.Visual device: MARK point recognition;Feeding way:Electric feeder with double motor.


    Details of led making machine

    full-automatic dual module multi-functional pick and place machine,to produce two different products at same time.

    It adopts the method of Group to picking and separate to placing,Separate to picking and separate to placing.Each head can be controlled independently, and Flexible mounting of various components.

    4 sets of imported cameras, synchronously recognize, effectively ensure mounting speed and precision.vision for the flight identification,mark correction.



    HT-E5D
    PCBPCB length widthMax:500*300mm min:100*100mm
    PCB thickness0.5~3mm
    PCB clampingElectric clamping + Adjustable pressure pneumatic
    Mounting mode

    ØGroup to picking and separate to placing

    ØSeparate to picking and separate to placing

    O.S.systemWindows 7
    softwareR&D independently
    displayTouch screen monitor
    Input deviceKeyboard , mouse

    Vision

    system

    No.of camera

    2sets of imported camera

    Vision for the alignment identification,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<36mm
    Mounting speed80000CPH
    Components space0.2mm
    Power380AC 50HZ
    Power consumption8KW
    Conveyor transmissionMax length:500mm
    Transmission speed>500mm/sec
    Transmission directionBoth direction
    Transmission modeAuto online drive
    Air pressure>5.0kg /cm²
    Electrical controlIndependent research and development by ETON
    X,Y,X axis drive wayHigh-end magnetic linear machine + Servo motor control for X,Y,Z axis
    Feeding way
    Feeding systemNo.of feeders stationDuel mode.totally 60
    No.of nozzlesDual mode.totally 16
    Feeding wayElectric feeder with double motor

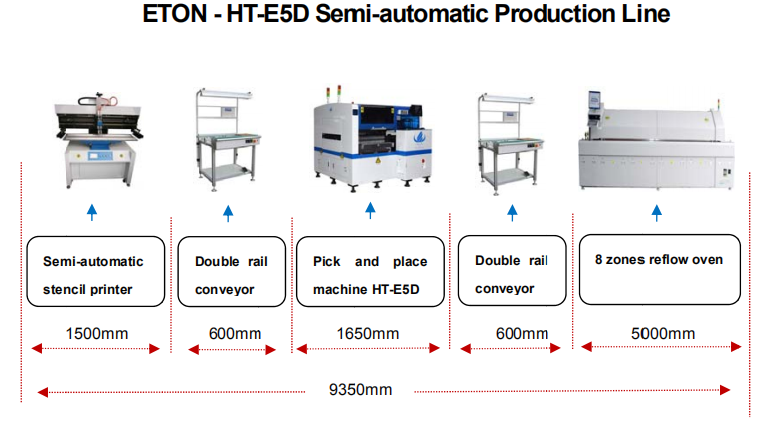

    A whole production line
    Surface Mounted Technology is the most popular Technology and process in the electronic assembly industry.Surface assembly technology is a circuit assembly technology that directly sticks and welds surface assembly components to specified positions on the printed circuit board surface without drilling plug-in holes on the printed circuit board.


    Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
    stencil printer:Operate the stencil printer to print the solder paste onto the PCB
    reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
    Conveyor:Check whether the PCBA is misaligned or shift.
