SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic

    Buy cheap SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic from wholesalers

    Buy cheap SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic from wholesalers
    • Buy cheap SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic from wholesalers

    SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-E8D-1200
    Certification : CCC, CE, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic

    high quality servo pick and place multifunctional SMT LED pick and place machine


    Product description


    Double-module magnetic linear motor multifunctional pick and place machine

    Vision for the flight identification, Mark correction

    Components: LED, capacitors, resistors, IC, shaped components, etc( Max:17mm, Min:0402)

    Application: LED lens, panel light, street light, linear bulb, tube, etc


    Features


    High precisionCan mounting 0402 component, and the mounting precision reach 0.04mm
    High speedthe capacity reach 90000CPH, with 28 PCS heads and 48 PCS feeder stations
    Dual system, dual module multi-functional mounting machine. To produce two different products at the same time

    R& D Software

    Independent and development software, free upgrades for life

    Technical parameter


    ET-E8D-1200 pick and place machine
    DimensionLength* Width* Height3150mm*2250mm*1650mm
    Total weight2500kg
    PCBPCB SizeMax:1200*300mm Min:100*100mm
    PCB Thickness0.5-5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting modeGroup picking and separate placing, separate picking and separate placing
    O.S.SystemWindows 7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Vision SystemNo. of camera4 sets
    Vision for the flight identification, mark correction
    Mounting precision+0.04mm
    Mounting speed90000CPH
    ComponentsLED, capacitors, resistors, IC, shaped components, etc.
    No. of feeders station48PCS single module
    No. of nozzles24PCS double module
    XYZ Axis drive wayHigh-end magnetic linear motor + servo motor
    Feeding wayElectric feeder with double motor

    Company information

    Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.


    Certificate

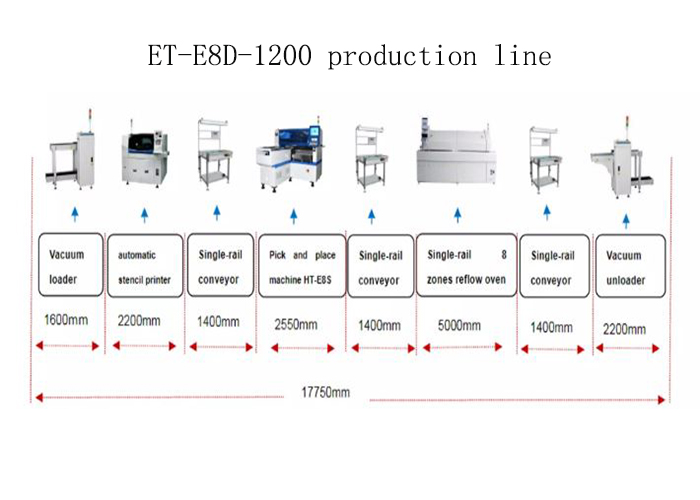

    Product line



    Remarks


    Packaging :vacuum wooden boxes packing

    Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery

    After sales service:

    Warranty period: one year

    Provide latest information about technology and equipment

    Free software upgrade


    FAQ

    Q:What is the delivery date?

    We will deliver the goods after 30 days' deposit.

    Q:Is electrical control developed independently?

    Yes, the electrical control is by ourselves and have exclusive patent technology.

    Q:Are you a manufacturer or trading company?

    manufacturer. We have our own industrial park.

    Q: Is your software interface in English?

    English interface and Chinese interface are both available.
