    LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E5D
    Price : FOB USD 76000~86000/sets
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

    led light making machine Electronic Products Machinery Visual camera smart feeder


    reference configuration
    1.Control system: industrial computer + precision motion control card + touch screen monitor
    2.Software system: Chinese and English operating system R&D independently by ETON.
    3.XYZ axis Driver way: magnetic linear motor and servo motor
    4.Mounting nozzle: independently developed several types of nozzles.
    5.Sliding device: precision screw rod and linear guide rail.
    6.Visual device: MARK point recognition
    7.Feeding way:Electric feeder with double motor


    Details
    It adopts the method of Group to picking and separate to placing,Separate to picking and separate to placing.Each head can be controlled independently, and Flexible mounting of various components.

    XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

    Double module magnetic linear motor multifunctional pick and place machine,totally 60 PCS feeders station and 20 heads, feeding way is electric feeder with double motor,It can meet the mounting of most components.


    A whole production line
    Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
    stencil printer:Operate the stencil printer to print the solder paste onto the PCB
    reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
    Conveyor:Check whether the PCBA is misaligned or shift.




    HT-E5D led light making machine
    PCBPCB length widthMax:500*300mm min:100*100mm
    PCB thickness0.5~3mm
    PCB clampingElectric clamping + Adjustable pressure pneumatic
    Mounting mode

    Group to picking and separate to placing

    Separate to picking and separate to placing

    O.S.systemWindows 7
    softwareR&D independently
    displayTouch screen monitor
    Input deviceKeyboard , mouse

    Vision

    system

    No.of camera

    2sets of imported camera

    Vision for the alignment identification,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<36mm
    Mounting speed80000CPH
    Components space0.2mm
    Power380AC 50HZ
    Power consumption8KW
    Conveyor transmissionMax length:500mm
    Transmission speed>500mm/sec
    Transmission directionBoth direction
    Transmission modeAuto online drive
    Air pressure>5.0kg /cm²
    Electrical controlIndependent research and development by ETON
    X,Y,X axis drive wayHigh-end magnetic linear machine + Servo motor control for X,Y,Z axis
    Feeding way
    Feeding systemNo.of feeders stationDuel mode.totally 60
    No.of nozzlesDual mode.totally 16
    Feeding wayElectric feeder with double motor

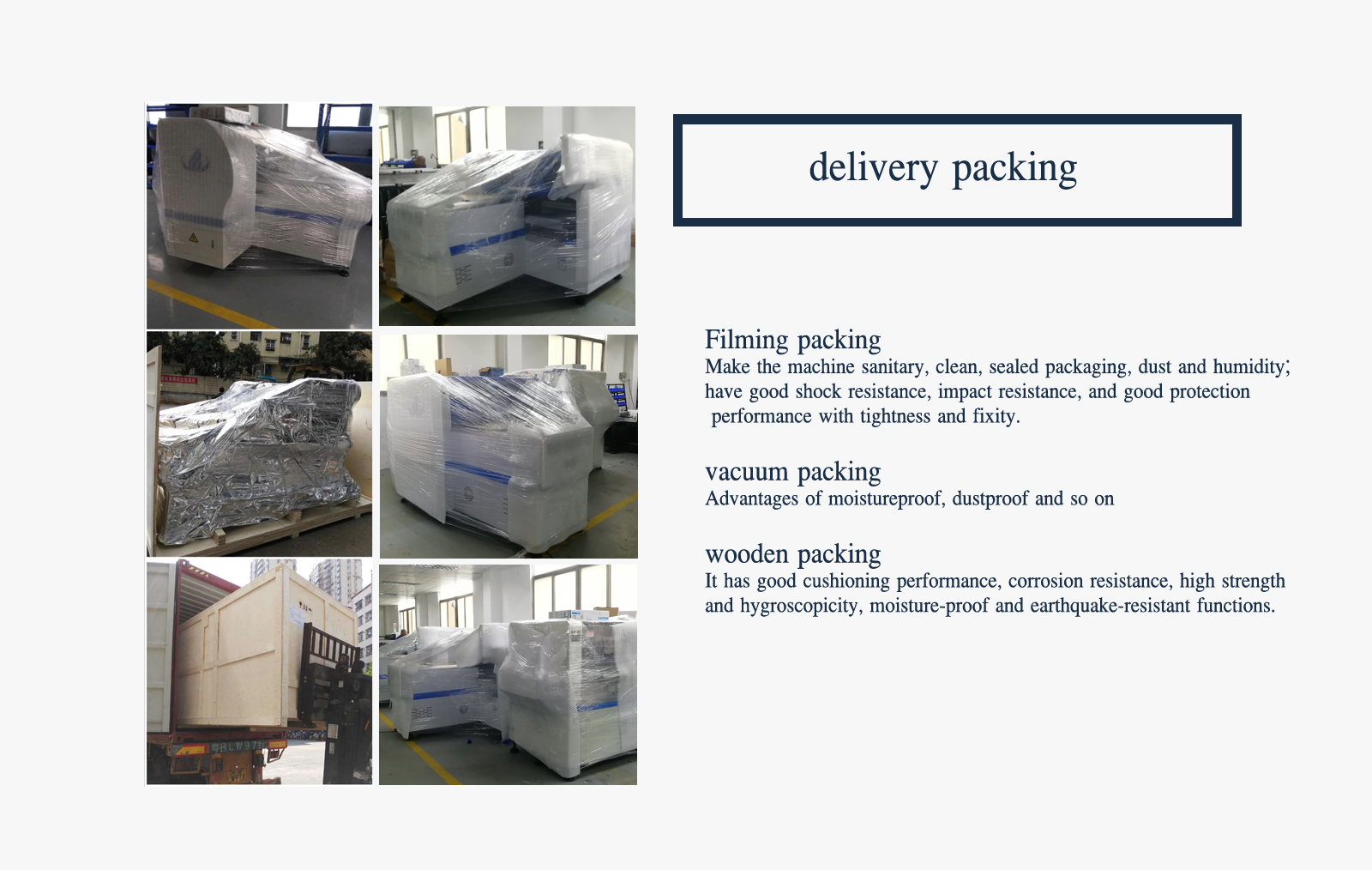

    Packaging and Delivery

    Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

    Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



    Certificate of honor

    ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.



    Partners&project cases


    Remarks:
    1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
    2.Delivery time: 30 days after deposit.
    3.Warranty: 1 year.(including spare parts)

    How this pick and place machine can do ?
    All kinds of led light or led products or electroic boards, Such as lamp,bulbs,led tube,DOB,led strip light,rope light,panel light,street light,down light,etc


    FAQ:
    1.What’s the terms of payment? What about the trade term?
    T/T is OK. You can choose FOB Shenzhen.
    2.What is the maximum height of components that can be mounted on a machine?
    The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
    3.Is this machine difficult to operate?
    No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.

    4.What kind of driving mode does the XYZ axis adopt?
    X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
    5.Is your software interface in English?
    English interface and Chinese interface are both available.
