fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine

    Buy cheap fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine from wholesalers

    Buy cheap fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine from wholesalers
    • Buy cheap fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine from wholesalers
    • Buy cheap fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine from wholesalers

    fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : RT-1
    Certification : IC.CCC..SIRA
    Price : 30000-40000
    Payment Terms : T/T, L/C
    Supply Ability : 50 Units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    fully Automatic Latest Model 10 heads SMT Machine led bulb manufacturing machine

    Economical Stable Visual Position Bulb Making Machine

    RT-1

    Accurately place, manager, and track components with Smart Feeders

    Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.

    Application:

    Especially DOB bulb, max mounting height 40mm can perfectly pick an place big components and shaped components on pcb

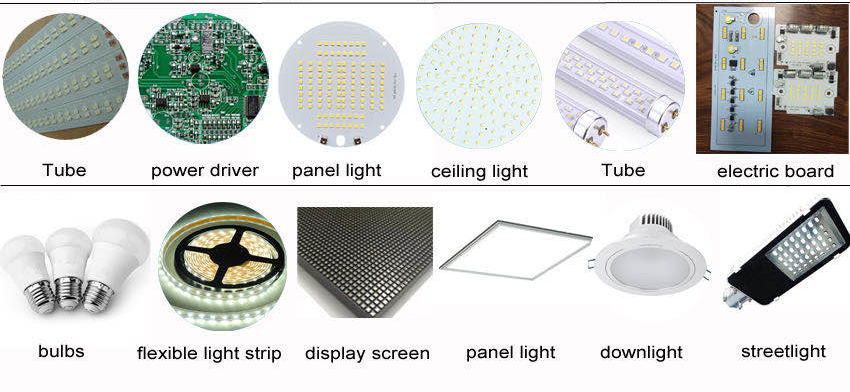

    Also capable for power driver, electric boards,LED screen, down light, panel, strip, lamp, street light, ceiling light and etc.


    TECHNICAL PARAMETER


    RT-1 Technical Parameter
    1Length*Width*Height1650mm*1200mm *1570mm
    2Total Weight1200kg
    3PCB Length WidthMax:500*350mm Min:100*100mm
    4PCB Thickness0.5-5mm
    5PCB ClampingElectric clamping
    6Mounting ModeGroup picking and separate placingseparate picking and separate placing
    7SoftwareWindows 7
    8DisplayTouch screen
    9Input DeviceKeyboard,Mouse
    10No. of Camera2 sets of imported camera
    11Position CameraVision for the flight identification + MARK correction
    12Mounting repeat Precision±0.02mm chip
    13Mounting Height<40mm(component max height 20mm)
    14Mounting Speed40000 CPH(optimum)
    15ComponentsLED chip,capacitors,resistors,IC,RGB,shaped components etc.
    16Components Speed0.2mm
    17X,Y,Z Axies DrivingMagnetic linear motor+servo motor
    18feeder stations30PCS
    19No. of nozzles10 nozzles

    Major products


    8, 10, or 16 heads of multifunctioal pick and place machine

    Automatic highspeed chip pick and place machine

    Automatic glue dispenser machine

    Lens mounter

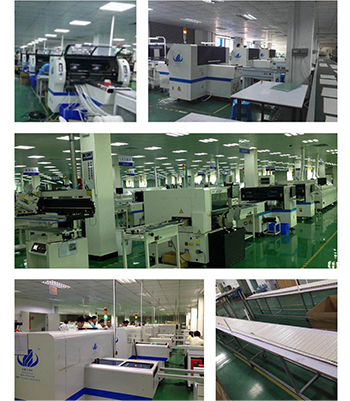

    Project cases


    We provide fulL SMT solution for you and core technology with our equipments


    Successful Experience

    1. Eton's customer in 35 countries around the world
    2. We have been helping customers to build a lot of new factories around the world.
    3. Training more than 500 experts and technician for customers.
    4. Became the most reliable Chinese partner for you.
