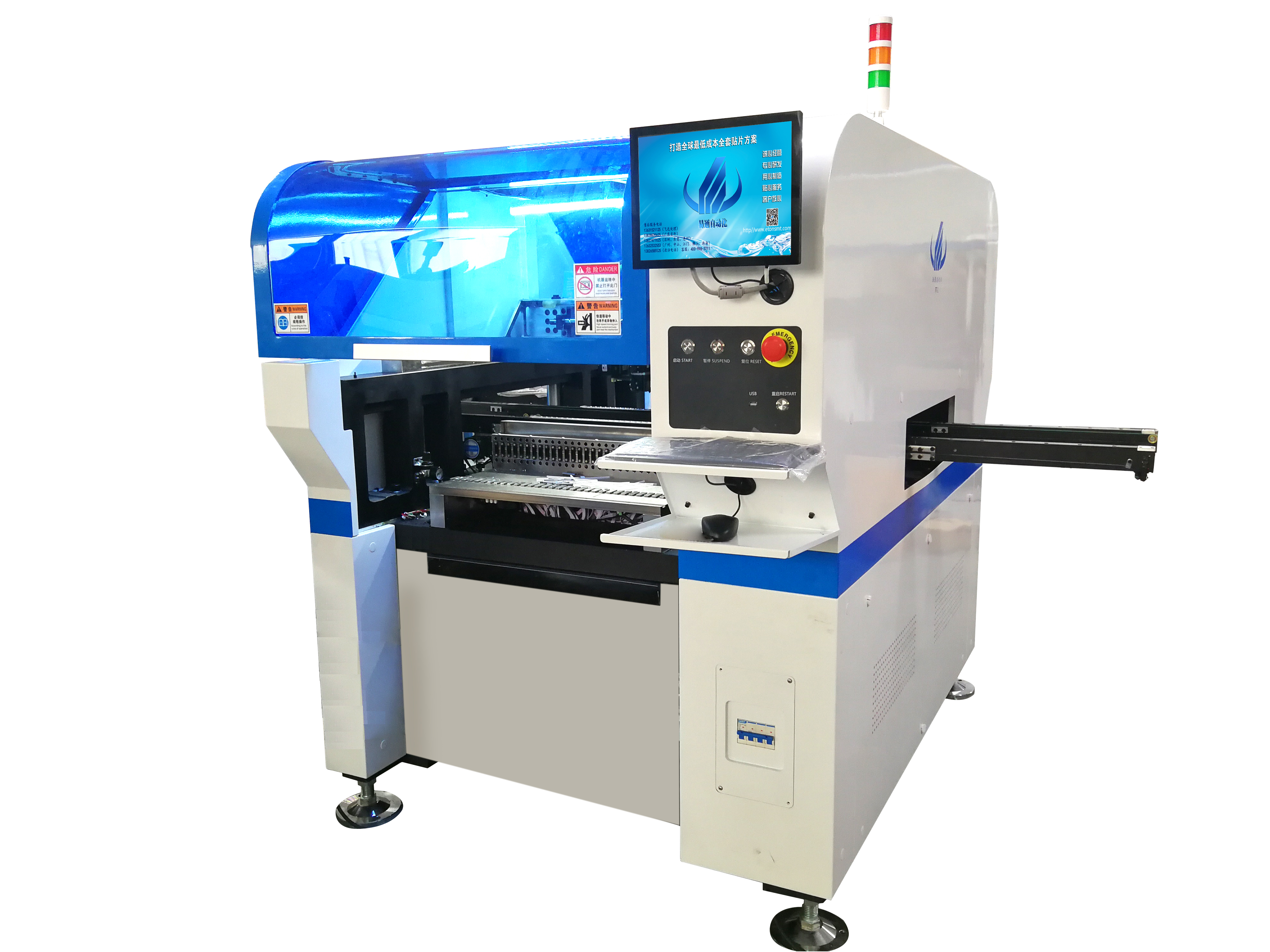

0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine

    Buy cheap 0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine from wholesalers

    Buy cheap 0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine from wholesalers
    • Buy cheap 0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine from wholesalers

    0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : RT-1
    Certification : CE,SIRA,CCC,ISO
    Price : EXW USD 33000/sets
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    0.02mm Precision 6KW 35000 CPH Led Bulb Assembly Machine

    high capacity LED Light led bulb assembly machine


    Two kinds of visual location system, one is Mark locating visual system in the upside another one is importing camera components location adjust recognition system in the downside, which can insure the accuracy of SMT.
    The Z axis was powered by 10 servomotors and made by CNC brushed aluminum rod which insured the high-speed material feed.
    Powerful function: with different material feeder, it can finish different SMT for led product.


    components
    LED,capacitors,resistors,IC,lens ,shaped components,etc.
    Product Applications
    LED house lighting: LED tube, LED bulb, LED ceiling light, led panel, led candle light
    LED lighting product: soft led strip, led strip, led module,LED display screen.


    Features
    1.Integrated flying vision system
    2.Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
    3.10 Simultaneous pick-up head
    4.Placement rates up to 35,000 CPH
    5.The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
    6.Accurately place, manager, and track components with Smart Feeders
    7.Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others.


    RT-1
    PCBPCB length widthMax:400*350mm min:50*50mm
    PCB thickness0.1~6mm
    O.S.systemWindows 7
    softwareR&D independently
    displayTouch screen monitor

    Vision

    system

    No.of camera

    2 sets of imported camera

    Vision alignment ,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<25mm
    Mounting speed30000~35000CPH
    Components space0.2mm
    Power380AC 50HZ
    Power consumption6KW
    X,Y,X axis drive wayServo motor control for X,Y,Z axis
    Feeding systemNo.of feeders station26 PCS
    No.of nozzles8 PCS




    Application



    Production line layout



    Logistics and delivery
    Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
    Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

    Q: How about your company-ETON?
    we are an professional manufacturer specialized in SMT Pick and Place Machine, We are the TOP-1 brand in China.And have own Industrial park.


    Q: What is your delivery date?
    The delivery date is about 20 days upon the full payment.

    Q: What is your payment terms?
    100% payment before delivery
    or 50% deposit in advance and the rest before shipment.

    Q: How is the warranty?
    1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
    2. The complete machine has a warranty period of 18 months from delivery and lifetime maintenance service.
    3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

    Q:Why choose us?
    ETON is the famous brand for high-end pick and place machine. We have professional R&D team, providing 24 hours quick response after-sales service.
