SMT pick and place machine led chip making machine

Parameter list

Here are the strip light machine (led lighting making machine/pick and place machine) main parameter.

Machine features

• Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
• Calibration automatically, high precision, available for RGB.
• Exclusive patent technology: Group to pick and group to mount.

Machine application

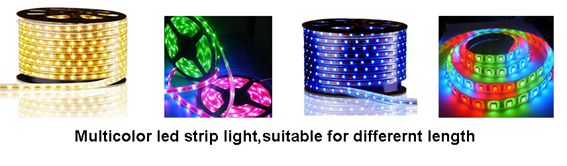

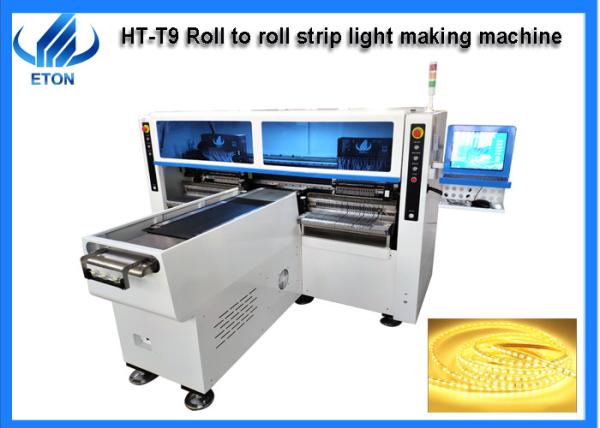

HT-T9 SMT strip light making machine mainly using in SMT strip light production line. For picking led chip and then mount on the PCB. In actual production line, it is using in led lightings, professional for 5 meters, 15meters, 25meters, 50 meters.

Machine lines

For 25m strip light line, it is special, because for so long strip , it need to have good design, like the conveyor length and the buffer machine. For strip line, we can provide 0.5m, 1m, 5m,25m,50m strip line design. Please contact us for more production line design.

FAQ

1. May I have your machine video?

A: Of course. We will share machine information with you once you contact me. But it is more easy to share video and picture about the machine.

2. Do you have tech team of yourself?

A: Yes, We have our own team. The software and drive control , all machine is design by ourselves. So we also support whole life free .

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
