Pick and placement machine smt led pcb making machine

Pick and placement machine

Pick and placement machine also called smt machine, chip mounter, placement machine. It is function is using heads and picking the components, like the common led chip, ic, capacitor, etc and placement in pcb, our pick and place machine is totally automatically.

Machine features

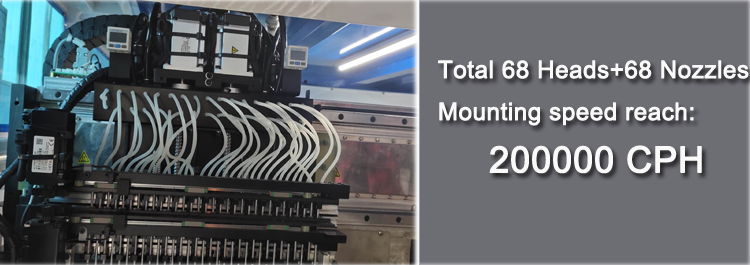

HT-F9 is fastest led pick and place machine in China, HT-F9 is new upgrade base on the old module HT-F7,there are 68 heads and 68 feeder station, adopt group picking and group mounting, it’s speed can be reach 200000 CPH.

Machine parameter

Here are F9 parameters

From Dimension:

2700*2300*1550 mm

From PCB Sizes:

Max PCB size is 1200*330 mm

Min PCB size is 100*100 mm

From Operating system:

Windows7 system, R&D software, Touch screen monitor.

From speed:

68 feeders and 68 nozzles, 200000 cph

If you want to have much machine parameter, please sent our inquiry.

Led lighting products show

F9 apply to 1.2m tube, 0.5m or 1m strip light, normal panel light, etc. Here are some products picture show.

Related machine show

In the smt line, there are not only one pick and place machine, also other related machines, like the stencil printer, dispenser, reflow oven, etc. Here are the related machine show:

Free install and training

Someone might be want to ask will the machine is hard to using for normal workers? To be honest, our machine is really very easy to operate, usually several days for training is enough. If you buy our machine, we will sent engineer to your factory for free install and training.

Choose our machine, sent you free install and training!

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
