    200000CPH 68 Heads LED Mounting Machine For Strip Light

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-T9
    Price : EXW USD 95000/sets
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    200000CPH 68 Heads LED Mounting Machine For Strip Light

    68 heads any length PCB size led mounting machine for flexible strip light

    Product presentation

    Strong durability: T9 pick and palce machine ,The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.

    High Speed: T9 LED mounting machine Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 64 feeders station and 64 nozzles.T9 led mounting machine can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.

    Simple operation:T9 led mounting machine Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.


    Technical parameter

    HT-T9
    PCBPCB length width250mm*any length
    PCB thickness0.5~1.5mm
    PCB clampingAdjustable pressure pneumatic
    Mounting modeGroup to take and group to mount
    O.S.systemWindows 7
    softwareR&D independently
    displayLED monitor
    Input deviceKeyboard , mouse

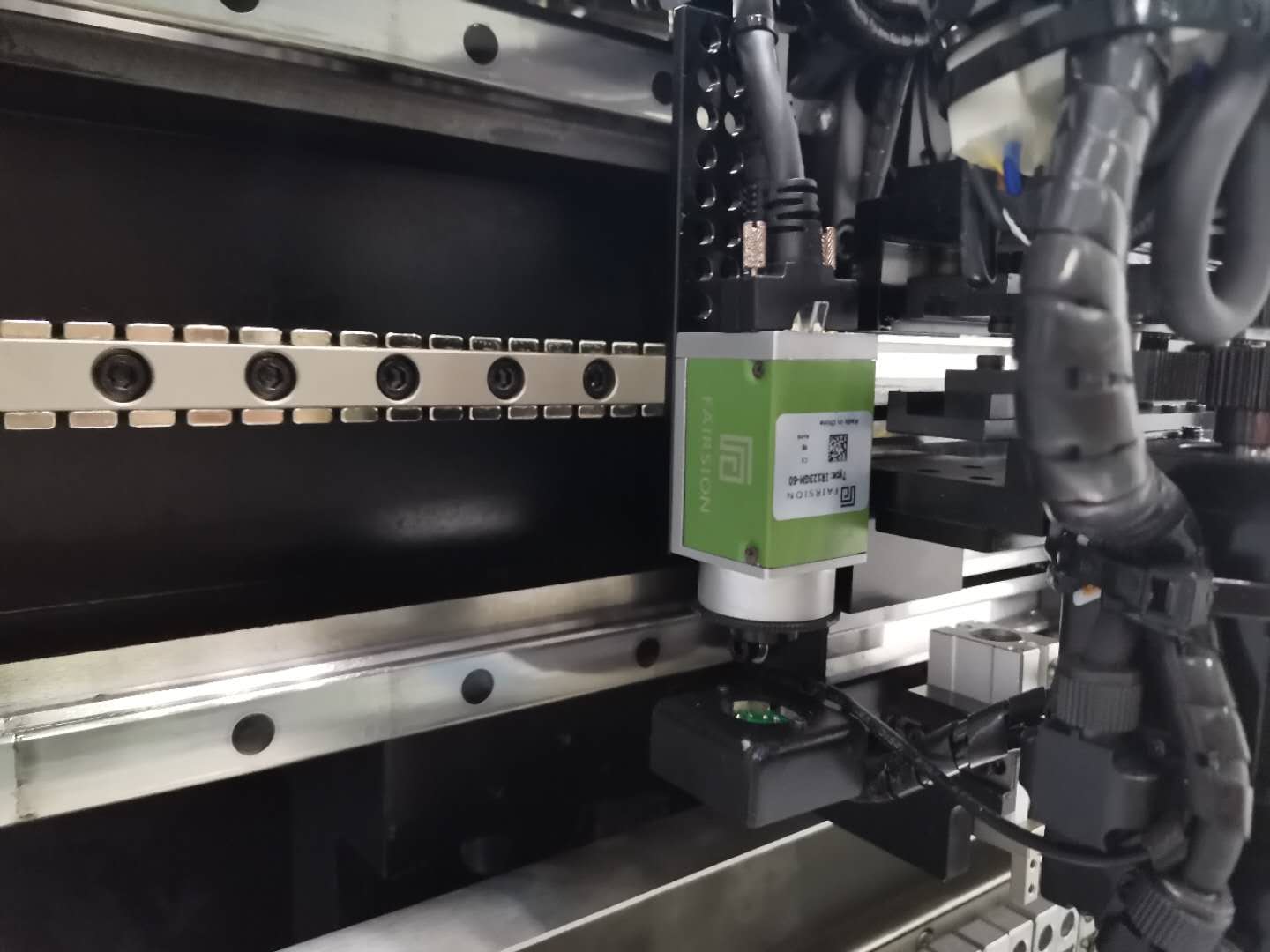

    Vision

    system

    No.of camera

    5 sets of imported camera

    Vision alignment,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<15mm
    Mounting speed100000~150000CPH
    ComponentsLED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
    Components space0.2mm
    No.of feeders station64PCS
    No.of nozzles64PCS
    Power380AC 50HZ
    Power consumption6KW
    Conveyor transmissionBelt drive
    Transmission speed>500mm/sec
    Transmission directionSingle (left to right or right or left)
    Transmission modeAuto online drive
    Position modeOptical
    Air pressure>5.0kg /cm²
    Electrical controlIndependent research and development by ETON
    Motion control card module 1setIndependent research and development by ETON
    X,Y,X axis drive wayServo motor control for X,Y,Z axis
    Feeding wayElectric feeder with double motor


    Remarks:

    1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

    2.Delivery time: 30 days after deposit.

    3.Warranty: 1 year.(including spare parts)
