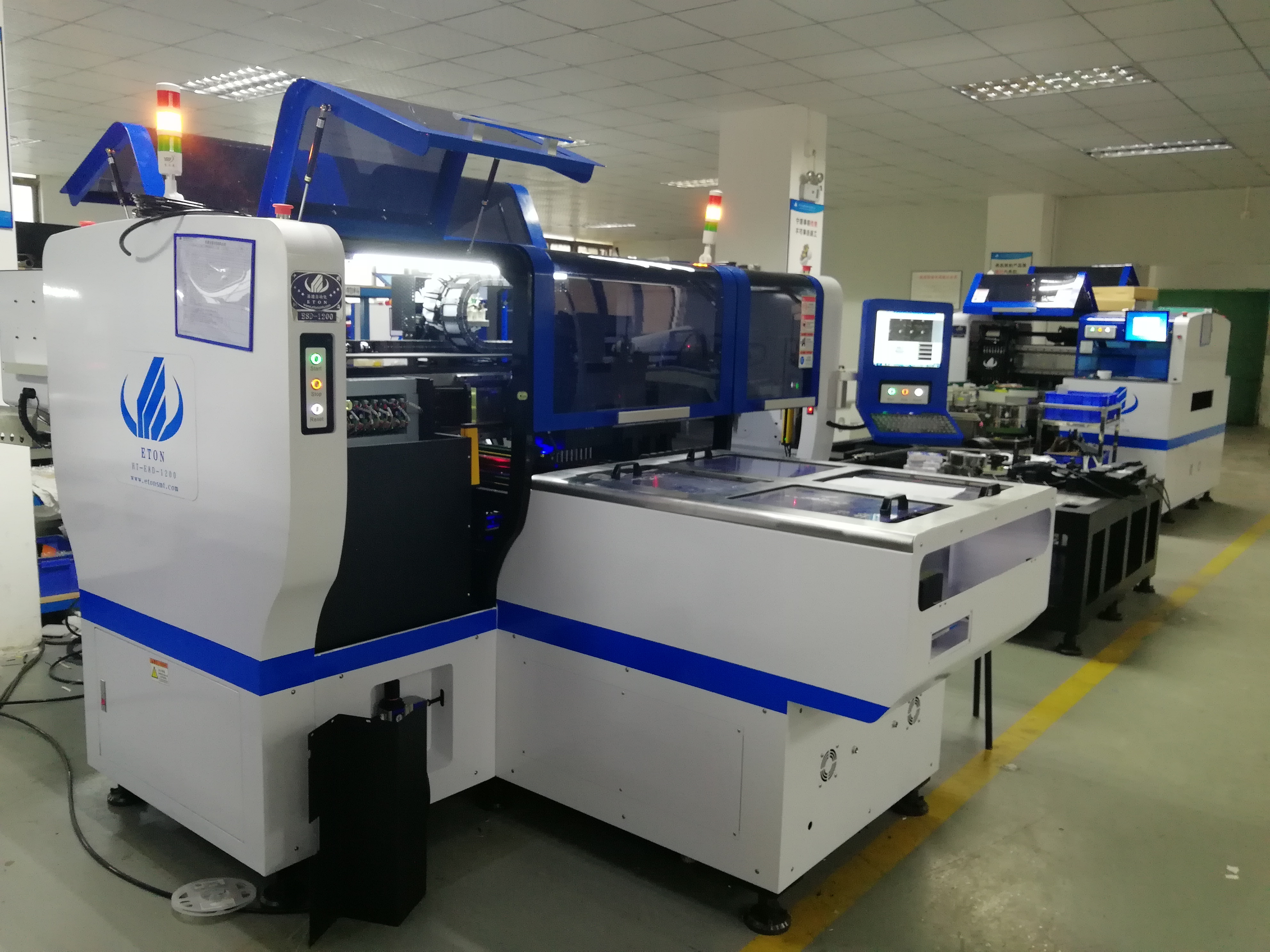

light production line Automatic High Precise High Stability pick and place machine

Product advantages

1.dual system,dual module machine

2.PCB length width : max 1200*300mm min:100*100mm

3.Exclusive patented technology:Group to picking and separate to placing,Separate to picking and separate to placing.

4.Vision for the flight identification ,mark correction.

5.X,Y,Z axis drive by high-end magnetic linear motor and servo motor.

6.Totally 40 feeders station and 16 nozzles.

Dual module high performance universal magnetic linear motor multifunctional high speed mounter pick and place machine, with very low material loss rate, can realize high speed PCB board handling, save the time of getting in and out of the board, the unique flight identification visual alignment system, to achieve high stability and high precision, not stop material re-loading and coordinate automatic generation function, save time.

Application industry

Household appliances industry, Auto electronics industry, Power industry, LED industry, intelligent control industry, etc.

Application

Mounting components:

LED,capacitors,resistors,

IC,shaped components,etc.

Application: Power driver,electric board,lens,linear bulb,household appliance etc.

Product presentation

lDual system ,dual module mounter

lHigh speed machine

lTo produce two different products at the same time.

lTouch screen monitor

Both direction transmission

Logistics and delivery

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

FAQ

1,How many cameras does the machine have?

There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.

2.What is the direction of transmission of machines?

The transmission direction of this machine is both direction.

3. What kind of driving mode does the XYZ axis adopt?

X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.

4. What is the mounting mode?

Group to picking and separate to placing,Separate to picking and separate to placing.

5.Is your software interface in English?

English interface and Chinese interface are both available.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
