For LED factory Pick and place machine in smt line

Function

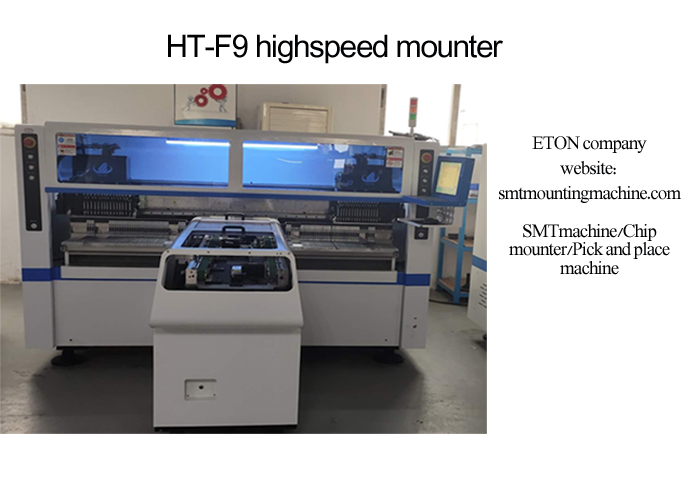

HT-F9 is one of our pick and place machine module, apply to smt production line, pick the components and mount on the pcb.

Different module suitable for different products. HT-F9 Apply to the 0.6M, 0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.Like led flexible strip, panel light, tube, etc.

About PCB

Max PCB Length Width:1200*330 mm

Min PCB Length Width: 80*330 mm

Thickness: 0.5-5 mm

Clamping:Adjustable pressure pneumatic

About the mounting

The mounting mode is Group to take and group to mount.It is our Exclusive patent technology.

Dual-arm four module, 17 nozzles for each mounting part, part A /B /C/D can be mounted separately or synchronously .

Magnetic levitation LED high-speed pick and place machine, mount 2-4 materials at the same time, capacity reach 200000 CPH.

About the camera

There are 5 sets of imported camera, vision alignment, mark correction.

About the components

Suitable for LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers,and so on.

Components space is 0.2mm

Independent research and development by ETON

Electrical control and Motion control card module all research and development by ETON

About ETON COMPNAY

ETON is the big manufacture of pick and place machine!!

SMT Line

SMT Line include many kind of machines, have Loader, Stencil printer, Conveyor, Pick and place machine, Reflow oven, Unloader.

We can provide all these SMT machines with factory price and good service !!!
