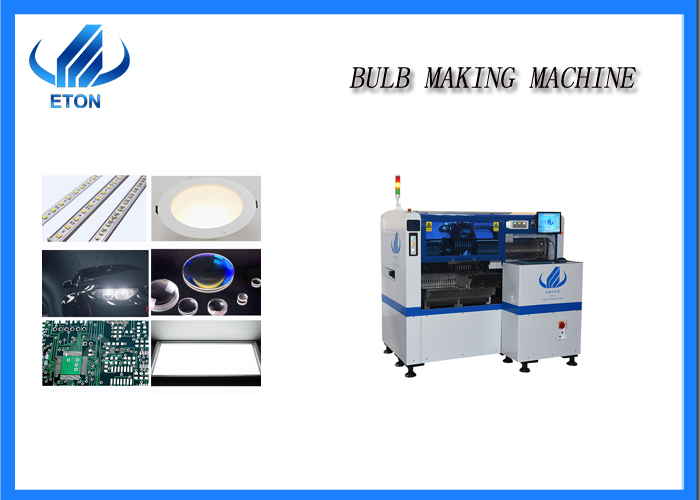

    High Accuracy High-precision Stable High Speed pick and place machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E5S
    Price : FOB USD 44000~54000/sets
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    High Accuracy High-precision Stable High Speed pick and place machine

    magnetic linear motor multifunctional pick and place machine:single module


    features


    1.Single module manetic linear motor multifunctional pick and place machine

    2.Mounting components:LED,capacitors,resistors,IC,shaped components,etc.

    3.Application: power driver.electric board.lens.linear bulb.household appliance etc.

    4.Component:min.size 0402 max.height 36 mm.



    Technical parameter
    PCBPCB length widthMax:500*350mm min:100*100mm
    PCB thickness0.5~3mm
    PCB clampingElectric clamping +adjustable pressure pneumatic
    Mounting mode

    Group to picking and separate to placing

    Separate to picking and separate to placing


    O.S.systemWindows7
    softwareR&D independently
    displayLED monitor

    Vision

    system

    Visual camera

    2 sets of imported camera

    Vision for the flight ide3ntification,mark correction

    Mounting precision0.02mm
    Mounting height<36mm
    Transmission directionSingle (left to right or right to left)
    Drive wayHigh-end magnetic linear motor +servo motor
    Feeding systemFeeders station30PCS
    nozzles8PCS
    Feeding wayElectric feeder with double motor



    Patented technology


    1. Electronic feeder feeding system: high stable,

    2. Vision alignment flight identification,mark correction:high Accuracy

    3. Non-stop material re-loading function:high speed

    4. Auto-optimization after coordinates generated ,etc.


    Application


    components:

    LED,capacitors,resistors,IC,shaped components,etc.

    Application:

    Power driver,electric board,lens,linear bulb,household appliance etc;street light,tube,bulbs,downlight.


    After sales service


    1.Maintenance period: 1 year.

    2.Visit customers regularly and gather information.

    3.Provide latent information about technology and equipment.


    FAQ

    What’s the terms of payment? What about the trade term?

    T/T is OK. You can choose FOB Shenzhen.


    What is the maximum height of components that can be mounted on a machine?

    The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.


    What is the length of the playable PCB?

    Max:500*350mm min:100*100mm


    Is this machine difficult to operate?

    No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
