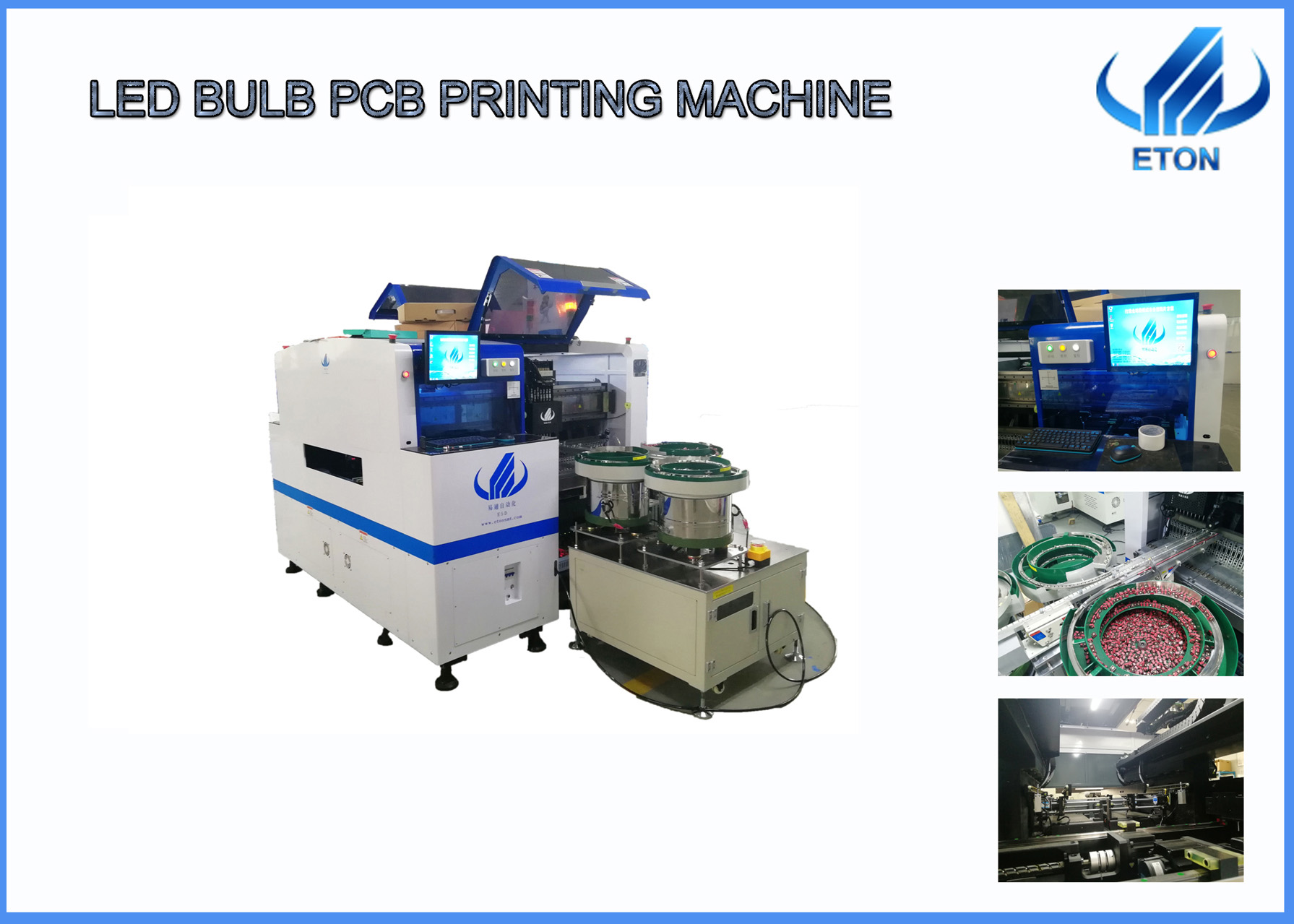

    Durable Perfect economic 16 Heads pick and place machine led chip mounter

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E5D
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    Price : FOB USD 46000~86000/sets
    Certification : ccc,ce,rise
    • Product Details
    • Company Profile

    Durable Perfect economic 16 Heads pick and place machine led chip mounter

    Durable Perfect economic 16 Heads pick and place machine led chip mounter


    Details


    full-automatic dual module multi-functional pick and place machine,to produce two different products at same time.


    It adopts the method of Group to picking and separate to placing,Separate to picking and separate to placing.Each head can be controlled independently, and Flexible mounting of various components.


    4 sets of imported cameras, synchronously recognize, effectively ensure mounting speed and precision.vision for the flight identification,mark correction.



    HT-E5D
    PCBPCB length widthMax:500*300mm min:100*100mm
    PCB thickness0.5~3mm
    PCB clampingElectric clamping + Adjustable pressure pneumatic
    Mounting mode

    ØGroup to picking and separate to placing

    ØSeparate to picking and separate to placing

    O.S.systemWindows 7
    softwareR&D independently
    displayTouch screen monitor
    Input deviceKeyboard , mouse

    Vision

    system

    No.of camera

    2sets of imported camera

    Vision for the alignment identification,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<36mm
    Mounting speed80000CPH
    Components space0.2mm
    Power380AC 50HZ
    Power consumption8KW
    Conveyor transmissionMax length:500mm
    Transmission speed>500mm/sec
    Transmission directionBoth direction
    Transmission modeAuto online drive
    Air pressure>5.0kg /cm²
    Electrical controlIndependent research and development by ETON
    X,Y,X axis drive wayHigh-end magnetic linear machine + Servo motor control for X,Y,Z axis
    Feeding way
    Feeding systemNo.of feeders stationDuel mode.totally 60
    No.of nozzlesDual mode.totally 16
    Feeding wayElectric feeder with double motor




    Packaging & Delivery


    Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.


    Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.


    Remarks:


    1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

    2.Delivery time: 30 days after deposit.

    3.Warranty: 1 year.(including spare parts)
