| Brand Name : | ETON |
| Model Number : | ET-L460 |
| Certification : | CE |
| Price : | 3000-4000USD |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 Units/ Per Month |
| Delivery Time : | 15 days |

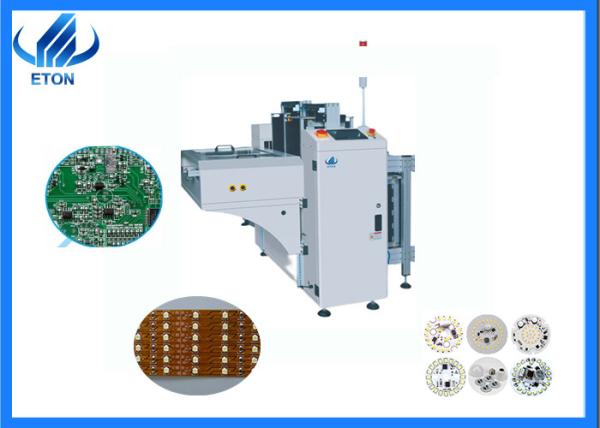

White Color LED Production Machine , LED Light Making Machine ET-L460 CE Certificated
SMT PCB Loader parameters
| Item | ET-L460 send board machine |
| Dimension | L1600*W1120*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Maximum size of PCB | (L)525*(W)460mm |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Features
1. Strong,firm and stable design.
2. 'soft touch' LED control panel or touch screen can be selected.
3.Top&bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.
5.Automatical diagnosing fault code display function.
6. Wear-resistant cable and have long service life.
