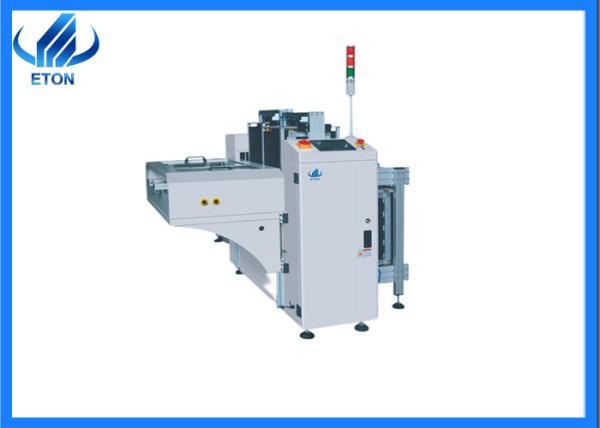

    Pneumatic Clamp Structure LED Light Manufacturing Machine ET-L330 SMT Production Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-L330
    Certification : CE
    Price : 3000-4000USD
    Payment Terms : T/T, Western Union
    Supply Ability : 100 Units/ Per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Pneumatic Clamp Structure LED Light Manufacturing Machine ET-L330 SMT Production Machine

    Pneumatic Clamp Structure LED Light Manufacturing Machine ET-L330 SMT Production Machine

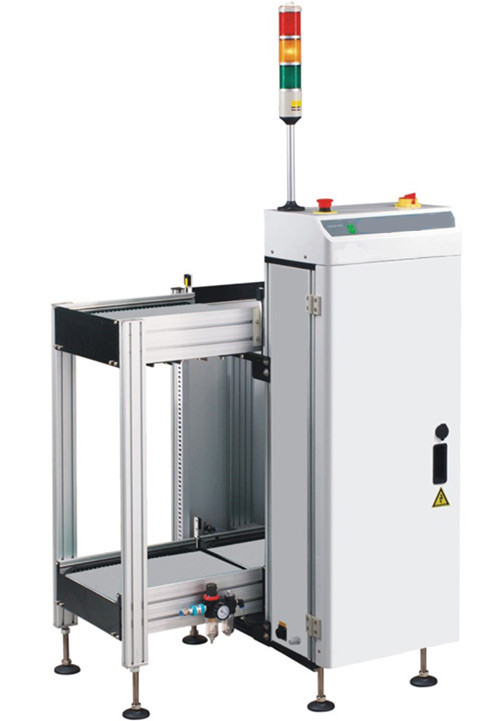

    Loader principle


    Used for the SMT production line [frist step],
    In response to the requirements of the Follow-SMT equipment's demand for pcb movement, Move PCB stored in the turnover box to the production line one by one. After the PCB boards in the turnover box are all transferred, the empty turnover box is automatically downloaded and replaced by a full-load turnover box.


    Loaders parameters


    ItemET-L330 send board machine
    DimensionL1400*W860*H1200±30mm
    FrameSpecial aluminum profile guide rail and special thousand bird type plastic chain
    Lift90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    Transmission motorTaiwan 15W fixed speed motor
    StructurePneumatic clamp structure
    Magazine SpecificationsL460*W400*565mm
    Maximum size of PCBL450*W330
    DirectionRight to left / left to right
    Lift platform pitch selection10,20,30,40
    Transmission heightH=920±30
    ControllerMitsubishi PLC programmable controller
    FunctionAutomatically send board
    Operation control panelDisplay control true color touch screen
    Pneumatic ComponentsPush plate cylinder position, adjusted by screw
    power supply220V 50HZ
    No. of Full load storage board50 PCS
    Gas source0.4-0.6MPa
    Electric control box1 set

    The FAQ


    1) This is the first time I use this kind of machine, is it easy to operate?

    There is english manual or guide video that show you how to use machine.

    If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.


    2) If machine have any problem after I receive it, how can I do ?

    Free parts send to you in machine warranty period.

    If the part is less than 0.5KG, we pay the postage.

    If it exceeds 0.5KG, you need to pay the postage.


    3) MOQ ?

    1 set machine, mixed order is also welcomed.


    4) How can I buy this machine from you? ( Very easy and flexible !)

    A. Consult us about this product on line or by e-mail.

    B. Negotiate and confirm the final price , shipping , payment methods and other terms.

    C. Send you the proforma invoice and confirm your order.

    D. Make the payment according to the method put on proforma invoice.

    E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.


    Our Service


    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * Visit our Factory.


    After-Sales Service

    * Training how to install the machine, training how to use the machine.

    * Engineers available to service machinery overseas.
