    Small LED PCB Send Board LED Production Equipment 220V 50Hz Power Supply

    Ask Lasest Price
    Brand Name : ETON
    Model Number : ET-L250
    Certification : CE
    Price : 3000-4000USD
    Payment Terms : T/T, Western Union
    Supply Ability : 100 Units/ Per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Small LED PCB Send Board LED Production Equipment 220V 50Hz Power Supply

    Small LED PCB Send Board Machine ET-L250 SMT Production Line Machine

    SMT loader Features:

    1. Research purpose: To achieve the automation of SMT, suitable for other similiar PCB in loading&unloading.
    2. Decrease the pad oxide in manual operation, and the labor
    3. Apply to import PLC Controller, high automation, ensure the stability
    4. Can set the function of single-up, Max. Times up to 10
    5. The frame is applying to the superior aluminum material, superior selection, strong and durable
    6. Apply to high precise SMT handspike exported from Japan, ensure the in-putting without mistake.
    7. We can produce all dimensions of machine according to clients' PCB size.

    SMT loaders parameters

    ItemET-L250 send board machine
    DimensionL1100*W780*H1200±30mm
    FrameSpecial aluminum profile guide rail and special thousand bird type plastic chain
    Lift90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    Transmission motorTaiwan 15W fixed speed motor
    StructurePneumatic clamp structure
    Magazine SpecificationsL355*W320*565mm
    Maximum size of PCBL330*W250
    DirectionRight to left / left to right
    Lift platform pitch selection10,20,30,40
    Transmission heightH=920±30
    ControllerMitsubishi PLC programmable controller
    FunctionAutomatically send board
    Operation control panelDisplay control true color touch screen
    Pneumatic ComponentsPush plate cylinder position, adjusted by screw
    power supply220V 50HZ
    No. of Full load storage board50 PCS
    Gas source0.4-0.6MPa
    Electric control box1 set


    The related machines

    Companys information

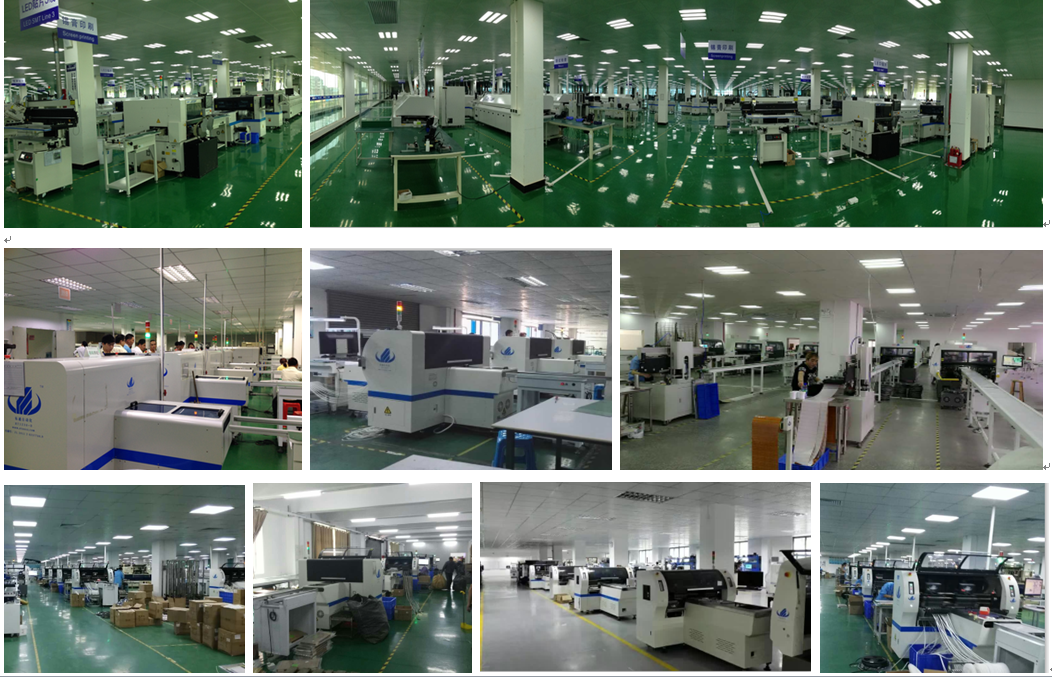

    Shenzhen Eton Automation Equipment co.,ltd is a professional original manufacturer for SMT machines. Which can provide loader, conveyor, printer machine, pick and place machine, reflow oven, PCB clean machines, vacuum suction machine, wave machine, solder paste machine and so on with more than 10 years experience.

    Eton five level management policy is:

    Sinere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
