80000CPH 3mm PCB 16 Nozzles LED Mounting Machine

    Buy cheap 80000CPH 3mm PCB 16 Nozzles LED Mounting Machine from wholesalers

    Buy cheap 80000CPH 3mm PCB 16 Nozzles LED Mounting Machine from wholesalers
    • Buy cheap 80000CPH 3mm PCB 16 Nozzles LED Mounting Machine from wholesalers

    80000CPH 3mm PCB 16 Nozzles LED Mounting Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E5D
    Certification : CE ISO CCC
    Price : USD 43000~95000
    Payment Terms : T/T, Western Union
    Supply Ability : 50 Unit per mouth
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    80000CPH 3mm PCB 16 Nozzles LED Mounting Machine

    Double module magnetic linear motor multifunctional pick and place machine HT-E5D


    Product description:

    HT-E5D features 16 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. with double module, can produce two types of products at the same time. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.It's intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power,driver.Its high precision,apply to LED chips,resistor,capacitor,IC,shaped components etc.


    Technical parameter:

    DimensionLength1650MM
    Width2000MM
    Height1550MM
    Total Weight2800KG

    PCB
    PCB SizeMax:500*300mm Min:100*100mm
    PCB Thickness0.5-3mm
    PCB ClampingElectric clamping + Adjustable pressure pneumatic
    Mounting Modegroup picking and separate placing,separate picking and separate placing.
    Vision System
    No. of Camera
    4 set of imported camera
    Vision for the Flight Identification,Mark correction.
    Mounting Precision±0.02mm
    Mounting Height<36MM
    Mounting Speed80000CPH
    Components:Max:36mm,Min:LED 0402LED,resistor,capacitors,shaped components,etc.
    Components Space0.2mm
    Feeding SystemNo. of Feeders60PCS
    No. of NozzlesDual mode , totally 16
    Feeder StyleUse Electric Feeders

    Company Introduction:

    ETON Automation Equipment Co., Ltd.is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption”in the world,meanwhile ETON also the largest high-tech manufacturer in Chine with strong capability of design,R&D,manufacturing,sales&service,and rates as “Shenzhen high-tech enterprise”“China high-tech enterprise”“Shenzhen TOP Brand”“2015LED Technology Innovation Award”“The 4th China LED First Innovation Award”“Industry Special Contribution Award”“Double soft enterprise”etc.

    With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
    Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.We will continue to make great efforts to satisfy the customers' requirement.

    SMT Pick and Place Machine: It is our primate product, the working teams have always been dedicated to the research and development of SMT machine, which has become a widely recognized brand by customers.

    Our Certificate:

    ETON is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world.
    Under your witness, we will continue to work hard, strive for innovative research and development of more advanced

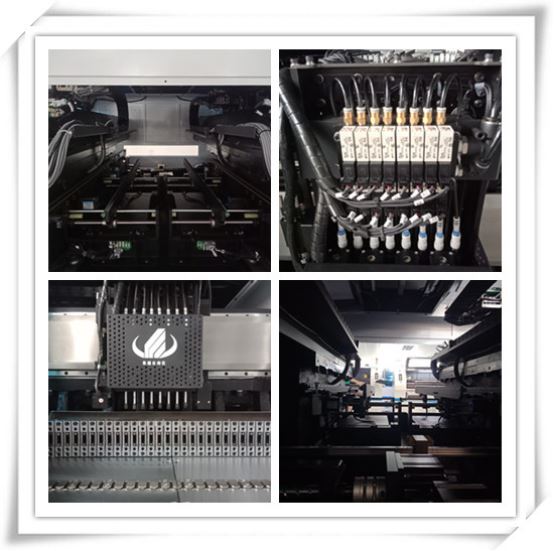

    Detail:



    Production solution & Parking & Transportation :

    Our packing method is vacuum wooden case packing.

    Supporting sea, air and land transportation.



    Exhibition & Certification:


    Our service:

    1) Pre-Consultation: provides professional SMT solutions for the full line.

    2) Factory Warranty: One-year warranty factory service.

    3) Installation : On-site installation and commissioning , to ensure smooth production.

    4) Technical Training: provides professional training from Level 1 to Level 3.
