    Yadak Pneumatic Clamp LED Light Production Line Double Track Send Board Equipment

    Ask Lasest Price
    Brand Name : ETON
    Model Number : Double track send board machine
    Certification : CE
    Price : 3100USD
    Payment Terms : T/T, Western Union
    Supply Ability : 100 Units/ Per Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

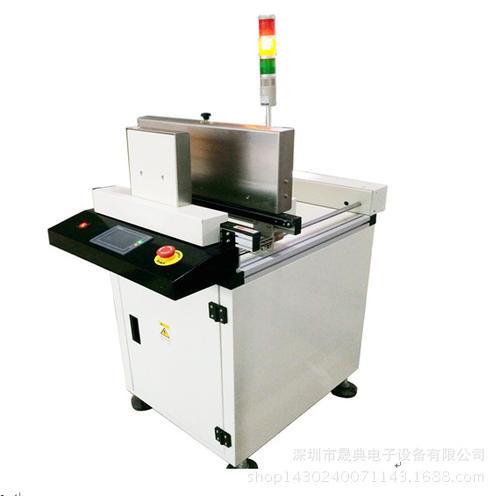

    Yadak Pneumatic Clamp LED Light Production Line Double Track Send Board Equipment

    The SMT board machine is a kind of production equipment used in the SMT production and processing of electronic products. Its main function is to put the unmounted PCB board on the SMT board machine and send it to the suction machine, then the suction board. The machine automatically places the PCB on the track of the solder paste printer and uploads it to the solder paste printer for brush solder paste operation


    ItemDouble track send board machine
    DimensionL1100*W1500*H1270mm
    FrameSpecial national standard aluminum profile guide rail and special thousand bird type plastic chain
    Lift90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
    StructureYadak pneumatic clamp
    0.6M long push plate Conveyor1 set
    Magazine Specifications(W)320*(L)355*(H)570mm
    Maximum size of PCBL330*W250
    DirectionLeft to right (the orbital distance is specified by the customer and cannot be changed after the specification)
    Lift platform pitch selection10,20,30,40, 50
    Operation control panelTaiwanese joint venture display control touch screen
    power supplySingle phase 220V 50HZ
    Gas source0.4-0.6MPa
    Electric control box

    1 set


    Shenzhen Eton Automation Equipment Co., Ltd established in 2009. Which is national high-tech enterprise. We concentrate on building national brand and provides customers with professional, efficient, low consumption and specializes in R$D, production, sales and service of SMT machines.


    If you have the requirement on SMT machines, welcome to contact Alison .
