    High Speed LED Mounting Machine SMT Pick And Place Machine With 40000CPH 10 Heads

    led lamp manufacturing machinery high speed led mounting machine led assembly machine smt pick and place machine smt production process


    Features of SMT pick and place machine

    YT-101 SMT placement machine with high speed Multi Modular heads

    Apply high speed multi modular head,apply to ultra small chip 0201~40*40mm large Chip,wider component range.


    YT-101 smt placement machine with Brand new flight vision Camera

    Improve recognition performance,size up to 40*40mm ,apply to BGA or CSP etc.


    YT-101 SMT placement machine with Vasuum Sensing Device and Ultra high speed capacity

    Each placement head with independent detection function,which improves the stability of the equipment and the reliability of the product.

    Adopt high-end magnetic linear motor,servo system and multi function modular head,the capacity increased by 25% compared qith traditional machine,optimum placement speed reach 40000CPH.

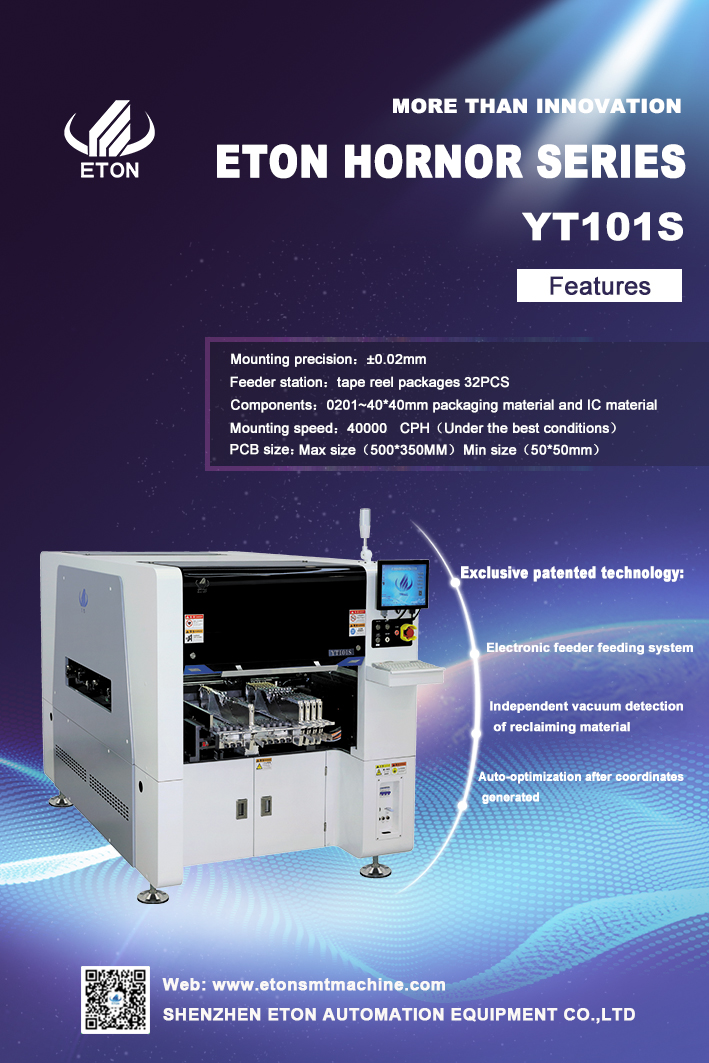

    Pictures of pick and place machine


    SMT PRODUCTION LINE SOLUTION



    The surface mount assembly process mainly includes the following steps: solder paste printing, component mount, and reflow soldering. The steps are summarized as follows:


    Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other. First, the steel plate is etched or laser cut, and then the solder paste is printed on the welding pad of PCB by the squeegee of the Printing machine, so as to enter the next step.


    Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.As the design of surface adhesive components is becoming more and more precise, the distance between the joints is becoming smaller, so the technical level difficulty of placement operation is increasing day by day.


    Reflow Soldering,(Reflow Soldering) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB, after Reflow furnace first preheating with activated flux, to raise its temperature to 217 ℃ melt solder paste, feet and PCB Soldering pad connected components, then after cooling, cooling, make the solder curing, surface adhesive components and PCB bonding is completed.


    Our Services


    1. Before order:
    We will support professional suggestion of SMT line
    We will recommend the best module according to the products
    We will supply best quotation with factory price
    2. After order:
    Machine will have good test and aging before shipping
    We support machine free installation and training, special time we support online training, and video teaching.
    We have Professional after-sales team, could solve problem as soon as possible
    Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.

    FAQ



    For future coopertion, if you are also interested in SMT Line, please ccontact us as soon as possible. Here are some question as example:
    1. I want to produce led display, does your machine suitable for produce this product?
    A: Yes, we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc
    2. We do not have any experience for machine operate, is it difficult for operating ?
    A: Our machine is very easy ! friendly man-machine interface, simple and easy to learn, operator can control machine within a few days of training.
    3. I am from India, can I pay in Indian rupees?
    A: So sorry, this order only support pay by USD or CNY. And we also support pay by Alibaba directly.


    Contact


    email: ethel@eton-mounter.com

    whatsapp/wechat:008613824337025
