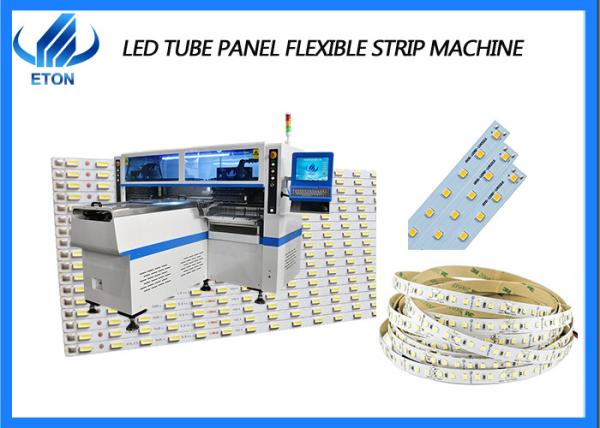

LED tube panel flexible strip light pick and place machine with 68 heads

Main Technical Parameter

Machine main part:

Three main components: software, electrical and mechanical.

Machine parts and functions

Mainframe: The brain of a machine that collects feedback signals and processes them before issuing instructions

Electric box: all the circuit of the machine is integrated in the electric box. After external power connection, it controls the running process of the machine together with the host machine

Circuit board: Controls various parts of the machine

Servo motor: after the servo motor is energized, it turns positive and negative, and drives the screw rod to rotate by connecting the screw rod with the coupling, thus driving (mounting head, transportation platform) to do linear reciprocating motion. A servo motor controls a screw.

Linear motor: magnetic linear motor, through external electric connection to make the actuator generate a magnetic field, stator itself is a permanent magnet, moving stator through the interaction between magnetic poles to make the mount head reciprocating motion.

Magnetic grid ruler: non-contact scanning magnetic field, and the analog measurement value into absolute or incremental output signal, high detection accuracy, fast response speed, to a certain extent determines the accuracy of head mounting.

Linear guide rail: used to support and guide the moving part (mounting head, transport platform), according to the specified direction to do high precision reciprocating movement

Stepper motor: the track width is adjusted by adjusting the motor to drive the belt connecting screw, so as to be suitable for the installation of different circuit boards of customers. The transport motor drives the belt, which drives the circuit board.

The semi-automatic production line

Solder paste printing machine,conveyor, Pick and Place machine, reflow oven.

The full-automatic production line

PCB Loader, conveyor, transplanting machine, buffer frame, automatic printing machine, pick and place machine, belt transport guide rail, reflow oven, PCB Un-loader.

FAQ:

Q: What’s the terms of payment? What about the trade term?

A: T/T is OK. You can choose FOB Shenzhen.

Q: What’s your delivery time?

A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.

Q: Is there any quality guarantee?

A: We stick to quality first, client-oriented, Continuous improvement!

Q: Is your software interface in English?

A: English interface and Chinese interface are both available.

Q: It’s hard to use the machine?

A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
