LED Strip light making machine ETON SMT supplier

Machine parameter

PCB:

Suitable for max pcb width 250(±10)mm, and any length(5m/25m/50m/100m/etc)

Suitable for 0.1-0.5mm pcb thickness

PCB Clamping mode is vacuum adsorption, cylinder clamping, track width adjustable

Mounting way:Group picking and group placing

Mounting speed:

The theoretical speed is 500000 CPH, Double side :500000 CPH, Single side 250000 CPH

No.of Feeder station: Double side 136 PCS, Single side 68 PCS

No.of Heads: Double side 136 PCS, Single side 68 PCS

Dimension: 3454*3035*1777 mm with 3100kg

Machine features

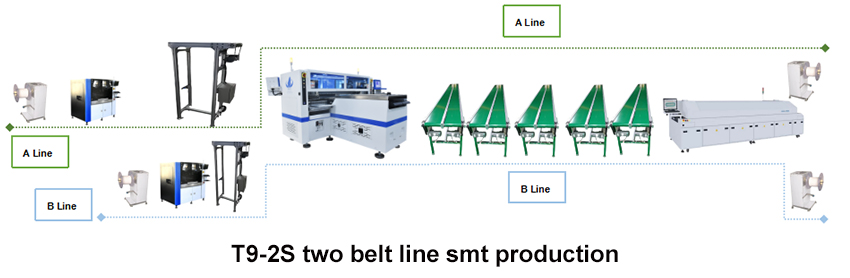

1. This model is super high speed chip mounter for led strip light, it is designed to double mounting heads with double conveyor belt line, so it is suitable for produce two FPCB LED Strip light at the same time

2. Save much space with same high speed level capcity.

3.Specially for manufacturing Strip light

4. Could produce two different pcb design at the same time with dual system dual computer

Client factory showing

ETON Factory showing

ETON as the top smt brand in China, we have more than 50000 square meters industry park with 300 workers in all over the world.

FAQ

1. What is the final product ?

A: Pick and place machine function is mounting smd components on the pcb, the final product is PCBA

2. Do you provide from A to Z solution for led strip light?

A: We supply whole smt line,include: Stencil printer machine, Pick and place machine, Reflow oven machine, Conveyor, etc

3.Could you arrange engineer to our factory for machine install and training?

A: Yes, we will sent engineer for machine install and training after you buy our machine

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
