Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now
    Buy cheap Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component from wholesalers

    Buy cheap Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component from wholesalers
    • Buy cheap Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component from wholesalers
    • Buy cheap Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component from wholesalers

    Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-202
    Certification : CE , ISO , CCC
    Price : USD 51000-76500 per set
    Payment Terms : T/T, L/C
    Supply Ability : 50 Unit per mouth
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component

    SMT mounter for Power driver 0201 component pick and place machine


    Technical Parameter of YT202


    ModelYT202
    PCB size(L*W)

    Max size:500 * 450mm (single)

    500 * 300mm(double)

    Min size:50mm*50mm

    PCB thickness0.5-4.5mm
    PCB clampingCylinder clamping, track width adjustableSystemWindows 7
    Rail2 Rail,2 gantries (Rail 1,4 are fixed rail)SoftwareR&D independently
    Production management MES systemCustomized(Option)No.of camera4 sets (Digital camera)
    Head flight vision recognition component
    Off-line programmingAvailableVision alignment + Mark correction
    Repeat precision±0.02mmMounting speed90000CPH (Optimum speed)
    Mounting height≤20mmComponents rangeMin 0201~10mm packages and IC etc.
    Power380AC 50HZ 6KWTransmission directionStandard: Single direction
    Operating environment23℃±3℃Transmission modeOnline drive
    Air consumption0.4-0.6mpa (4-6kgf/cm²) 150N/minPosition modeOptical
    Electrical controlIndependent research and development by ETONMotion control card module 1 setIndependent research and development by ETON
    No.of HeadsDouble side: 20 pcs (single side:10 pcs)X,Y,Z Axis drive wayHigh-end magnetic linear motor +Servo motor
    Feeding wayIntelligent Double head FeederNo.of Feeder station

    Double side: 32pcs, totaltape reel Packages 64pcs

    (single) side: 16pcs, total tape reel Packages 32pcs)


    SMT production line solution


    ETON over 10 years experience in SMT machines, so we can provide our professional suggestion with a whole line solution.

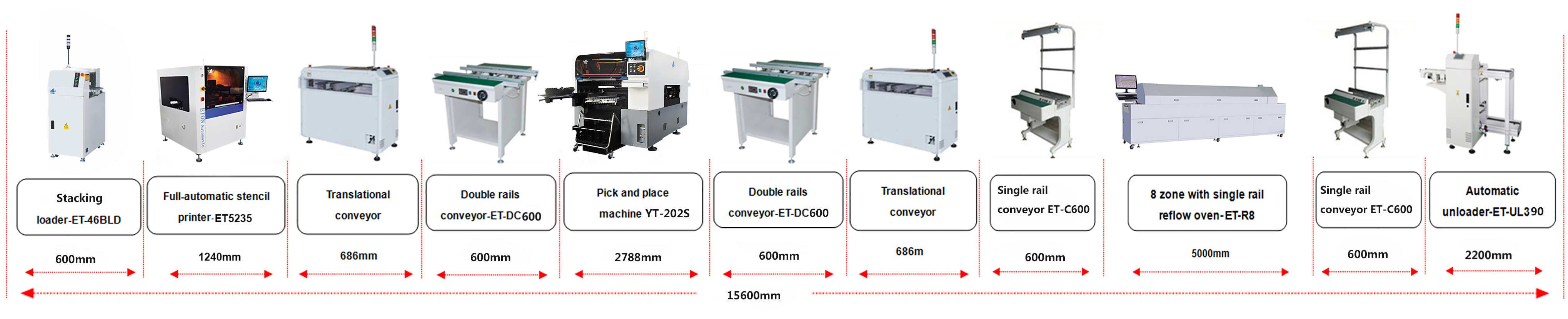

    Here are the semi-automatic SMT line solution layout:


    Company profile


    SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
    Was founded in 2011, an excellent company for SMT mounter machine, obtaining 133 intellectual property technologies, and have a 50000 square meters industrial park in Jiangxi province. Named as “China high-tech enterprise” “Shenzhen TOP Brand” and “Industry Special Contribution Award” etc.

    Double Head Feeder SMT Mounter SMD Pick And Place Machine For Power Driver 0201 Component


    FAQ

    How was your services?
    A1. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
    Q2. Can you accept D/P or D/A as the payment term?
    A2. For our regular payment terms, we usually use T/T.
    Q3. Can you accept CFI as the quoted price?
    A3. We only accept EXW as the quoted price.
    Q4. Whether you have professional engineers for installation of the machine in India?
    A4. Yes, we have professional engineers in India to provide considerable service to our clients.
    Q5. How long can the delivery date take?
    A5.If have stock the delivery date is about 20 days, others is according to the actual situation
