PICK AND PLACE MAHCINE with making Flexible strip
Product introduction

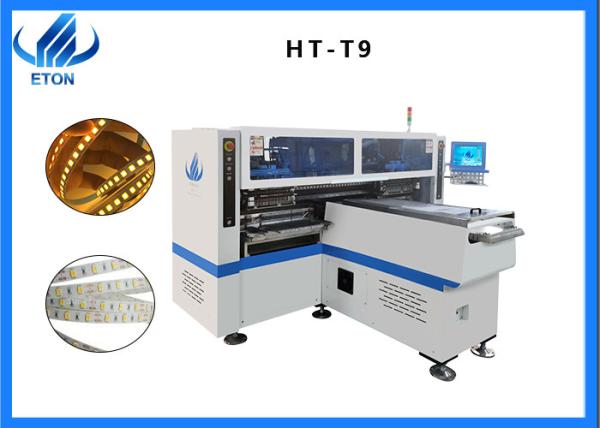

1.HT-T9 is a special film Mounter for rolling soft light strips.
2.With double arm operation, four different materials can be pasted
at the same time without reducing the production speed.
3.The optimal production capacity can reach 250000 CPH.
4.68PCS mounting heads and 68PCS Feeder material stations.
5.Split into two arms for maximum speed.
6.5 PCS cameras to ensure mounting accuracy
Technical parameter
| Model | HT-T9 |
| Dimension |
| Length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode | Group picking and separately placing |
| O.S. |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction |
| Repeat mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge
rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning Way | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
ETON Company
With 11 years of industry experience, we have developed many types
of placement machines, such as ultra-high speed machine and
multi-function machine.
We can choose different types of products according to your
production needs.
If you are in the SMT industry, please don’t miss our company.
Certificates
Strong production capacity, ETON have more than 50000 square meter
Industrial park in Jiangxi Province, machine capacity more than 50
units/month
133 invention patents and property technology patents, including We
got 9 invention Patents, 112 practical patents, 12 software
copyrights
Service
Company five level management policy: sincere business, focus on
R&D, manufacturing intentions, considerate service, customer
trust.
“no worries” after sale service concept: the pearl River Delta
region to arrive within 4 hours, day to solve; Guangdong Province
24 hours.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
High service efficiency, there is service office in India. Besides
India, we also have local engineers in Egypt, Turkey. Can provide
you with timely services.
Chinese engineers provide online services. If necessary, Chinese
engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Do you have oversea after sale service?
