Newest High Precision High Speed LED Bulb Light 120000CPH Mounting Machine

Machine main features

• Adopt High speed multi modular head, apply to ultra small chip 0201~10*10mm large chip, widercomponent range;
• Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
• Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach120000 CPH;
• Brand new self-developed high precision placement head;
• Combine highaccuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
• Docking Cart: Double side docking cart slot 32 PCS, tape reel package:64 PCS(Single docking cart slot 16 PCS, tape reel package:32 PCS)
• Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
• The placement head adopt independent vacuum detection, improve placement performance;
• Off-line programming, save time of changeover cycle;
• Software AI intelligent learning function and automatic optimization function.
• Two gantry, 20 spindles*2 Gantry, total 40 spindles;
• Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.

Machine main parameter

China High-end Intelligent Manufacturing Pioneer

SMT INNOVATION

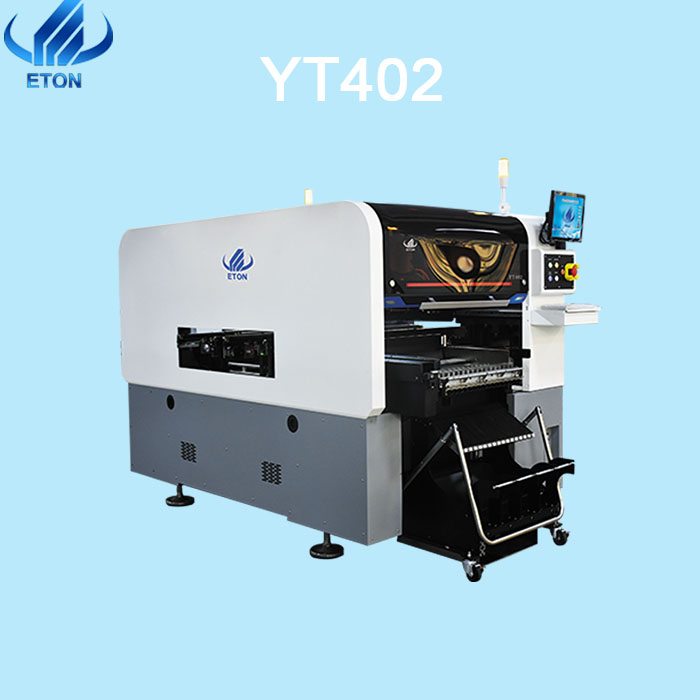

ETON HONOR SERIES YT402

High-speed Multi Modular Head

NON replace modular head

Application

Apply to 0201~40*40mm tape reel package and IC tray feeder

Mounting speed : 120000CPH(Optimum)

• High-speed Multi Modular Head

  Adopt High-speed multi modular head,apply to ultra small chip 0201 〜40*40mm large Chip.wider component range.

• Brand New Flight Vision Camera

  Improve recognition performance.size up to 40mm*40mm,apply to BGA or CSP etc

• Modular Head

  Each module 10 spindles, both high-speed and intelligent with light compact design.

• Vacuum Sensing Device

  Each placement head with independent detection function, which improves the stability of the equipment and the equipment and the reliability of the product.

• Ultra-high-speed Capability

  Adopt High-end magnetic linear motor.servo system and multi function modular head, the capacity increased by 25% compared with traditional machine,optimum placement speed reach 80000 CPH.

​Company Profile

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
