28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly

    Buy cheap 28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly from wholesalers

    Buy cheap 28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly from wholesalers
    • Buy cheap 28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly from wholesalers
    • Buy cheap 28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly from wholesalers

    28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E8S-1200
    Certification : CE, CCC, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly

    28 Feeders SMT Mounting Machine 2550mm Pick And Place Machine For Pcb Assembly

    Product presentation

    E8S-1200 a single module magnetic linear motor multifunctional pick and place machine, using group picking and separately placing, separately picking and separately placing mounting mode, with 45000 CPH capacity.

    Features

    • Single module magnetic linear motor multifunctional pick and place machine.
    • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
    • Component: Min. Size 0402, Max. Height 15mm.
    • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

    Exclusive Patented Technology:

    • Electronic feeder feeding system.
    • Vision alignment flight identification, Mark correction.
    • Non- stop material re-loading function.
    • Auto-optimization after coordinates generated, etc.


    Machine parameter

    ModelHT-E8S-1200
    Dimension2550mm*1650mm*1550mm
    Total weight1700kg
    PCB length width

    Max:1200*500mm

    Min:100*100mm

    PCB thickness0.5-5mm
    PCB clampingAdjustable pressure pneumatic
    Mounting modeGroup picking and separately placing, Separately picking and separately placing
    Mounting precision±0.04mm
    Mounting speed45000CPH
    No. of feeders station28PCS single module
    No. of head12 PCS single module



    SMT production line solution:
    ETON over 10 years experience in SMT machines, so we can provide our professional suggestion with a whole line solution.

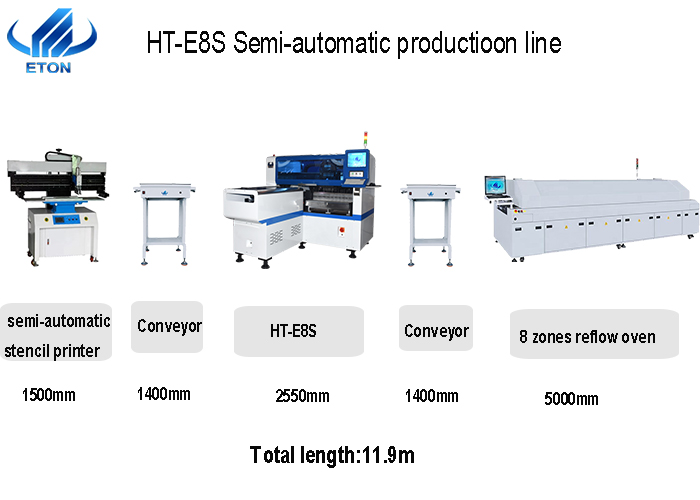

    Here are the semi-automatic SMT line solution layout:

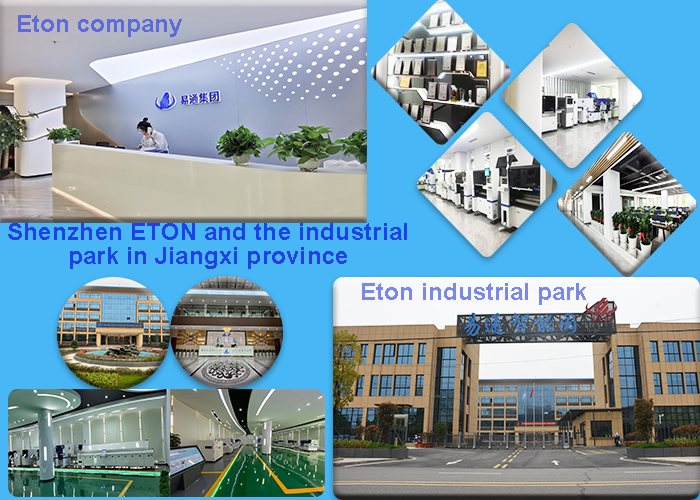

    Company frofile


    SHENZHEN ETON AUTOMATION EQUIPMENT CO.,LTD
    ETON was founded in 2011, is a company that keen on manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place and SMT peripheral automation equipment.

    Experiences:

    • Focusing on SMT pick and place machine more than 10 years
    • The products exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
    • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.


    Package adn delivery


    Our package of the machine is using foam cotton with vacuum package and equiped with boxes by trucks, to protect the machine in an optimal condition during teh transportation.

    Delivery: by sea, by air and land transportation



    FAQ



    Q1. How was your services?

    A1. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.

    Q2. Can you accept D/P or D/A as the payment term?

    A2. For our regular payment terms, we usually use T/T.

    Q3. Can you accept CFI as the quoted price?

    A3. We only accept EXW as the quoted price.

    Q4. Whether you have professional engineers for installation of the machine in India?

    A4. Yes, we have professional engineers in India to provide considerable service to our clients.

    Q5. How long can the delivery date take?

    A5.If have stock the delivery date is about 20 days, others is according to the actual situation.
