LED strip light automatic stencil printer machine

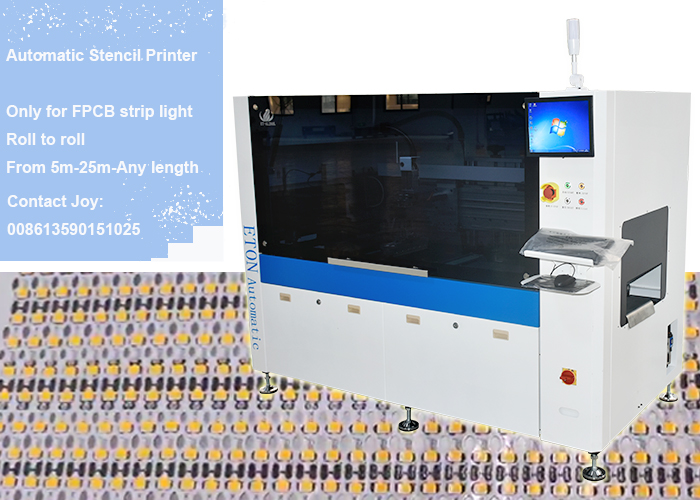

ET-AL260 Automatic printer

ET-AL260 is the full automatic vision stencil printer for no-wire strip light.

This machine is equip with programmable suspension printing head: two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material

Application of Automatic printer machine

ET-AL260 automatic stencil printer machine is professional design for roll to roll led strip light/led bar/soft light. But we also have other printer module could be satisfy different electrical board product printing require.

Parameter of ET-AL260

The Maintenance Method of printer machine

1. Automatic solder paste printing machine readiness detection. The readiness of the machine can be detected by jogging or cranking. Whether the installation position of the printing plate is suitable, if it is not suitable, it may damage the printing plate or make it too difficult to find the rules; whether the installation of the blanket is suitable, if it is not suitable, it may cause printing failure, and in serious cases may cause or machine damage.

2. The lubrication state of the automatic solder paste printing machine. First of all, you can check whether the oil circuit of the machine is smooth through the oil mark. If there is no oil on the oil mark or the oil mark is not clearly visible, you should stop in an emergency and carefully check whether there is oil leakage in the oil circuit. Low speeds are not conducive to lubrication of machines that use plain bearings, for example. Therefore, before performing such operations, it is better to idle the machine for oil lubrication. The oil pump of some machines is driven by the main engine. When the reverse point is used, the oil circuit will not only be unable to refuel, but will suck the oil in the oil circuit back to the fuel tank, so it should be avoided. Opposite point. The lubrication of some more important parts can also be detected by the temperature of the metal nearby. If the temperature is too high, it indicates that there is a problem with the lubrication.

3. Impact during the operation of the automatic solder paste printing machine. The smaller the impact during the operation of the machine, the more conducive to printing, and also prolong the service life of the machine. Reducing the printing pressure is an important condition to ensure the smooth operation of the machine. On the premise of ensuring the quality of the printed products, the smaller the printing pressure of the visual printing machine, the better. Reducing the speed of the machine is another important condition to reduce the moment of inertia of the machine. The lower the speed of the machine, the smaller the moment of inertia, so the machine should not always be running at high speed.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
