LED LIGHT FOR PICK ADN PLACE MACHINE

Daily maintenance for SMT machine

check parts name, process, nozzle fixture check buffer action, if the action is not smooth coated with a thin layer of lubricant, if the fixture loose, tight. Move the lens to clean the dust and residue on the lens. X axis lead screw check whether there is debris or residue, if necessary to clean. X-axis guide check whether the grease has hardened and residue adhesion. Y-axis lead screw check whether there is debris or residue, if necessary, to clean. Y-axis guide check whether there is any hardened grease and residue adhesion. W shaft screw screw check whether there is debris or residue, if necessary to clean, air interface check y-ring and o-ring aging, if necessary to replace.

Production Details

Warranty of core components:1 Year

Core Components:R&D by Eton

Place of Origin:Guangdong, China

Brand Name:ETON

Model Number:YT202S

Place of origin:China

Dimension:2788*1686*1375mm

Total weight:1700kg

Power:380AC 50HZ

Power consumption:6KW

Mounting speed:80000CPH

Visual camera:4sets of imported camera

After-sales Service Provided:Video technical support, Online support

Supply Ability

Supply Ability

50 Set/Sets per Month

The honor of the company

1.national hi-tech Enterprise

2.Guangdong hi-tech Enterprise S

3.Shenzhen hi-tech Enterprise

4.Shenzhen well-known brand

5.Shenzhen Equipment Industry SMT sub-sector leading enterprise

6.2015 LED Technology Innovation Award

7.China 4th LED Outstanding Award Industry Special Contribution Award

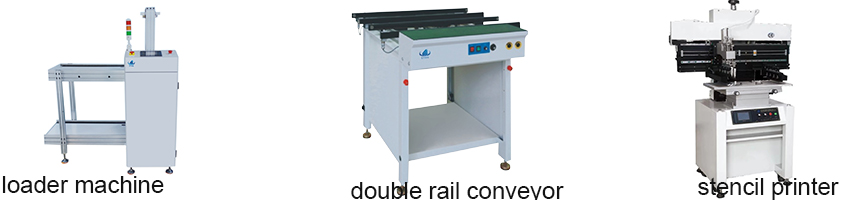

Related machine

Loader machine

Also known as falling machine, stacking machine, stacking machine, lift plate machine, palletizing machine.

Advantages: the utility model does not need the special equipment foundation, and can be placed on the hardened flat ground to be matched with the plate sending machine, which reduces the labor intensity of the operating workers, improves the working efficiency, and saves the labor, the whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide range of application.

machine parts

Axis Configuration

X-axis: the mobile header component is parallel to the PCB transfer direction.

Y-axis: the moving head component is perpendicular to the PCB transfer direction.

Z-axis: controls the height of the working head assembly.

R axis: control the rotation of the nozzle axis of the working head assembly.

FAQ

Q:Do you have wave soldering machine?

A:Sorry, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.

Q:Can i visit the production site of your machines in India?

A:i ahve to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
