PICK AND PLACE MACHINE 0201-10mm tape reel package and IC tray
feeder
YT202:20: it means that there are 20 suction heads in the dual-mode
group and 10 suction heads in the single-mode group. A single row
of matrix 10 heads is used to form a module with 10 suction heads,
and there are 20 suction heads in the dual-mode group.
2: Represents double mode group and double orbit.
Product features
Repetition accuracy: +-0.02mm
Number of feeders: 64 kinds of materials can be loaded
Range of mounting components: 0201-10mm packaging materials and IC
materials
Mounting capacity: 90000cph (under the best conditions of the
company)
PCB size: single board maximum (450*500mm); Double plate maximum
(300*500mm)
Minimum (50*50mm)

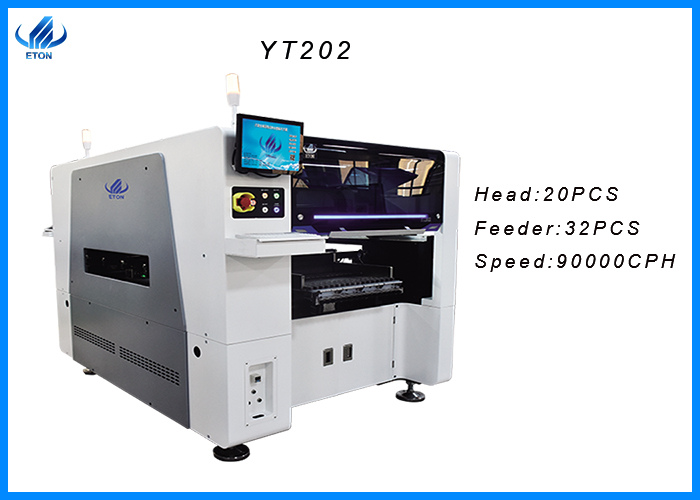

YT202:
1. Two sets of x-axis and one set of Y-Axis, using high-end
Magnetic Levitation Motor;
2. 20 sets of servo motors for Z-Axis independently control the
picking and mounting;
3. Four sets of four degree motors for R-Axis independently control
0-360 degree angle; It is realized by 1 control 5;
4. The three-stage track is divided into plate feeding track,
mounting track and publishing track, and the motor is realized by
12 sets of integrated motors;
PARTS INDRUDCTION
lHere is the high-precision magnetic linear motor, which is used to
improve the stability, speed and accuracy of machine placement. Our
magnetic linear motor uses Israeli technology.
lThis is Grating scale, It is a detection device, which determines
the accuracy of the head placement to a certain extent.
This Grating scale is RENISHAW/MicroE brand, from the UK and
America.
lThis is Drag Chain, The function is to protect the wires from
abrasion and prolong the service life of the machine. It is made in
Germany ---- IGUS brand.
lOur YT202 pick and place machine has 4 cameras, one module has 2
cameras, It is a flight recognition camera and the Mark camera.
This is the flight recognition camera, and this is the Mark camera.
Their role is to improve The accuracy of machine placement. This is
also one of the reasons why our multifunction machines can mount
precision components.
lLook here, each placement head of this multifunctional machine is
controlled by an independent servo motor, which can mount different
components.
lThis is the guide rail, our PCB board is transported in from here.
It comes from Japan, THK brand.
lThis is our industrial computer, EVOC brand, which is the TOP-2
Brand in the world. It is touch screen monitor, the software is
independently developed by ETON, with a Chinese and English
operation interface, and the operation is simple and easy to
understand.
Our products
We not only provide mounter, but also SMT peripheral equipment,
such as: loading machine, Stencil printer machine, Conveyor, Reflow
Oven, Translational machine, Cutting machine, Dividing machine,
Dispensing machine, Unloading machine, etc
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to
study in our factory, or we can send our engineers to yourfactory
to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems.
Any parts that require repair and replacement are free ofcharge
during the warranty period. We can also provide you with training
and on-site installation, and support remote control of the
machine, the machine uses Chinese and English interface, very easy
to operate.
