    6KW 250000CPH SMD Pick And Place Machine SIRA Led Strip Making Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F9
    Certification : CE,CCC,SIRA
    Price : EXW USD 48000~78000/sets
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    6KW 250000CPH SMD Pick And Place Machine SIRA Led Strip Making Machine

    SMD pick and place rgb led strip light making machine in led lamp production line




    Advantages of pick and place machine

    Vision systemvision alignment ,mark correction with 5 sets of imported camera
    High speedDual module professional mounter,17 nozzles for each mounting module;250000CPH
    High precisionXYZ axis by servo motor to drive ,Ensure that the machine can run at high speed for 24 hours.

    Technical parameter of SMT pick and place machine

    PCBPCB length widthMax:350*1200mm min100*100mm
    PCB thickness0.5~5mm
    O.S.systemWindows 7
    softwareR&D independently

    Vision

    system

    No.of camera

    5 sets of imported camera

    Vision alignment,mark correction

    Mounting precision0.02mm(repeat precision)
    Mounting height<15mm
    Mounting speed200000CPH
    ComponentsLED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
    Components space0.2mm
    No.of feeders station34PCS
    No.of nozzles68PCS
    Power220AC 50HZ
    Power consumption6KW

    Application of SMD pick and place machine

    LED tubes, panel lights, flexible light strips, street lights, etc.

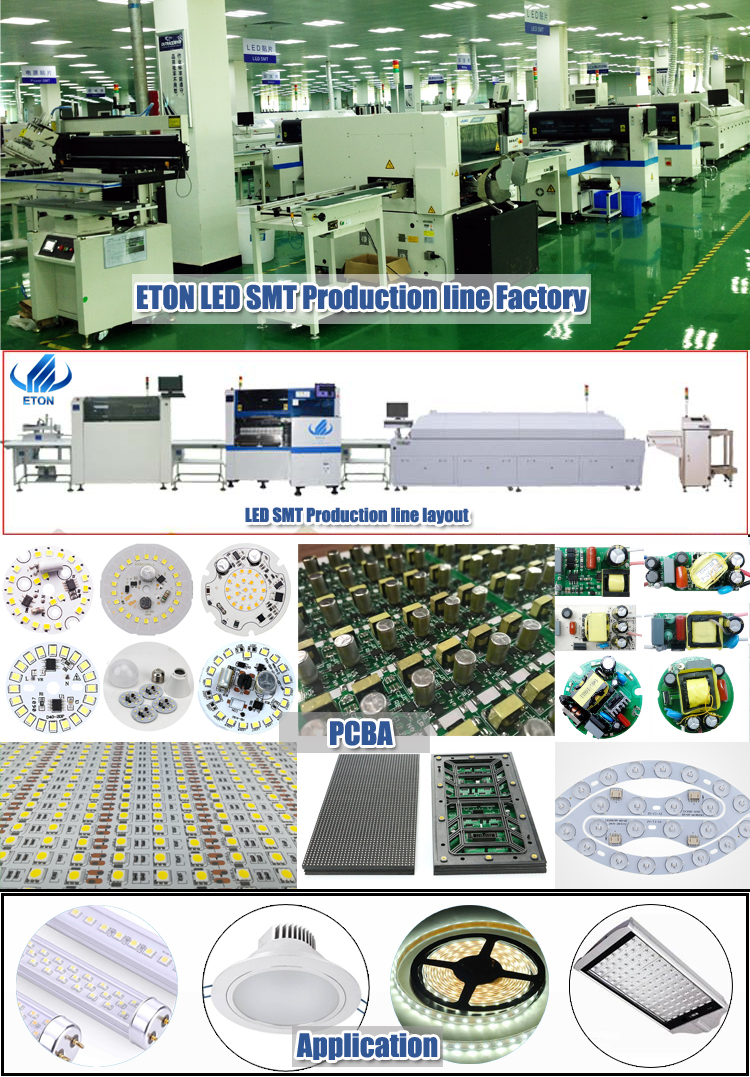

    SMT production line solution projects


    SMT production process
    processStep.details
    Step 1Solder paste PrintingOperate the stencil printer to print the solder paste onto the PCB
    Step 2Mounting PartThe PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
    Step 3Reflow SolderingThe PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
    Step 4TestingCheck whether the PCBA is misaligned or shift.
