Economy reflow oven machine 8 zones

Function of Oven Machine

Reflow oven machine is the main equipment in the SMT Line, Reflow soldering is mainly suitable for the welding of surface mount components and printed boards. By re-melting the paste solder pre-distributed on the printed board pads, the solder ends of surface mount components or pins and printed boards are completed. Soldering the mechanical and electrical connections between the board pads, and then complete the circuit function with certain reliability.

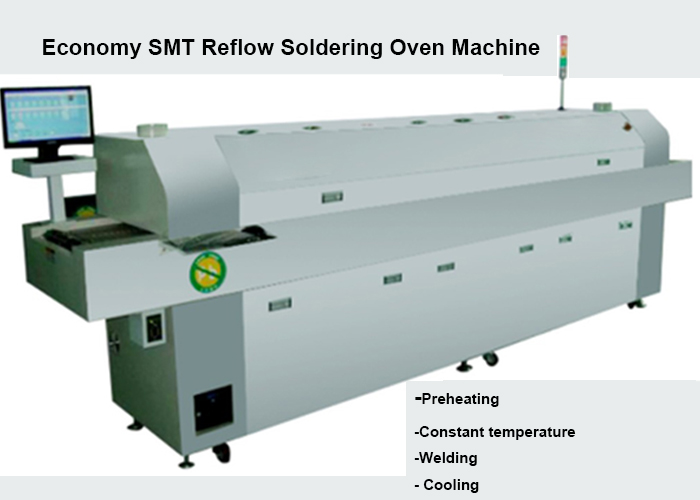

Economy SMT reflow soldering machine

• The preheating zone, the welding zone and the cooling zone are heated independently up and down, cycled and temperature controlled independently. The temperature difference between adjacent temperature zones can reach up to 100℃ without temperature stringing. The temperature and wind speed of each temperature zone can be adjusted independently.
• The imported high-temperature motor is directly connected to drive the hot air circulation, the hot air is well balanced, the operation is stable, the life is long, and the noise is low.
• Host computer control, computer can be cut off, independent control, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input

Features of Reflow Soldering Technology

1. The thermal shock of the components is small, but sometimes it will give the device a large thermal stress.

2. Only apply solder paste in the required parts, which can control the amount of solder paste applied and avoid defects such as bridging.

3. The surface tension of the molten solder can correct the slight deviation of the placement position of the components.

4. Local heating heat sources can be used, so that different welding processes can be used for welding on the same substrate.

5. Impurities are generally not mixed into the solder. When using solder paste, the composition of the solder can be properly maintained.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
