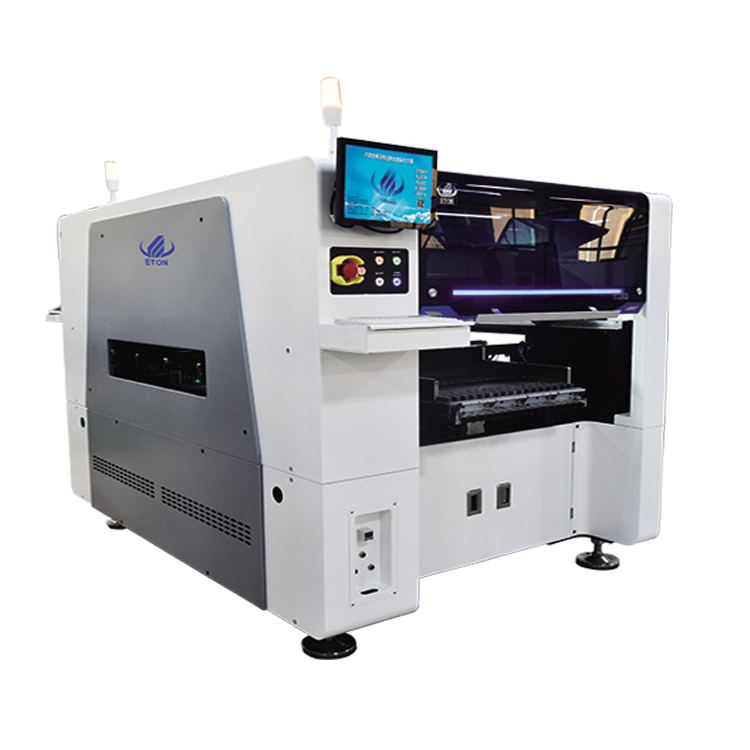

    two model 20 heads 90000CPH automatic SMD mounting machine for 0201 STOP

    Ask Lasest Price
    Brand Name : ETON
    Model Number : YT-202
    Certification : ccc,ce,risa
    Price : FOB USD 58000/sets
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

    two model 20 heads 90000CPH automatic SMD mounting machine for 0201 STOP

    two model 20 heads 90000CPH automatic SMD mounting machine for 0201 STOP

    Features of SMT smd mounting machine
    head flight vision Recognition Camera


    mark recognition:high precision Mark recognition system,adopt 3-color illumination recognition,apply to any shape mark and lens,Wider range of applications.

    Fived high pixel flight vision camera:high speed flight vision camera,quickly captures multiple head images at once,perform visual calibraction,alignment correction,adjustable light source brightness.

    Smart Double-head Tape feeder
    Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.it can achieve stable, accurate and high-speed feeding

    Ultra high speed capability

    adopt high end magnetic linear motor,servo system and multi function modular head,the capacity increaced by 25% compared with traditional machine,optimum placement speed reach 90000CPH.

    Pictures of pick and place machine


    Technical parameter of SMD mounitng machine

    PCB length width

    Double module&Double rail:
    MAX:500x300mm MIN:50x50mm
    Single module&Single rail:
    MAX:500x450mm MIN:50x50mm

    Components

    0201 IC 10mm pqckages and IC etc
    Mounting Height:10mm

    Mounting speed

    90000 CPH

    Mounting precision±0.03mm(Repeat precision)
    No. Of feeders station32PCS(Double material feeder, can load 64 trays of material)
    PowerAC380 50Hz
    Air supply0.4-0.6Mpa (4-6Kgf/㎡)
    Vacuum detectionIndependent vacuum detection of reclaiming material
    DimensionL 2317 X W 1376 X H 1762
    Total weight1700kg

    Our Services

    Attention
    1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
    2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
    3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
    4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.

    After-sale Service
    we will send our engineer to your factory to install machine and training freely.
    We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
    Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

    FAQ

    1, What’s the terms of payment? What about the trade term?
    T/T is OK. You can choose FOB Shenzhen.

    2, What is the delivery date?
    We will deliver the goods after 30 days' deposit.

    3, What mode of transport does the goods adopt?
    Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

    4, What is the direction of transmission of machines?
    The transmission direction of this machine is single direction.From left to right or from right to left.

    5, How about your operating system?
    The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
