    200K CPH High Speed Pick And Place Machine HT-F9 LED Strip Light Making Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-F9
    Certification : CCC/CE/SIRA
    Price : USD 46800-70200 Unit/Units
    Payment Terms : L/C, T/T
    Supply Ability : 50 Unit/UNits per month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    200K CPH High Speed Pick And Place Machine HT-F9 LED Strip Light Making Machine

    200K CPH High Speed Pick and Place Machine HT-F9 LED Strip Light Making Machine


    Production Introduction

    Dimension
    2700*2300*1550mm
    PCB size
    Max:1200*330mm Min:100*100mm
    PCB Thickness
    0.5-5mm
    Mounting Mode
    Group to take and group to mount
    No. of Camera
    5 PCS digital camera
    Mounting Speed
    200000-250000 CPH
    Applicable Components
    LED 3014/3020/3528/5050,resistor,capacitors,bridge rectifiers
    Feeders Station
    68PCS
    No. of Nozzles
    68PCS
    X,Y Axis drive way
    High-end magnetic linear motor +servo motor

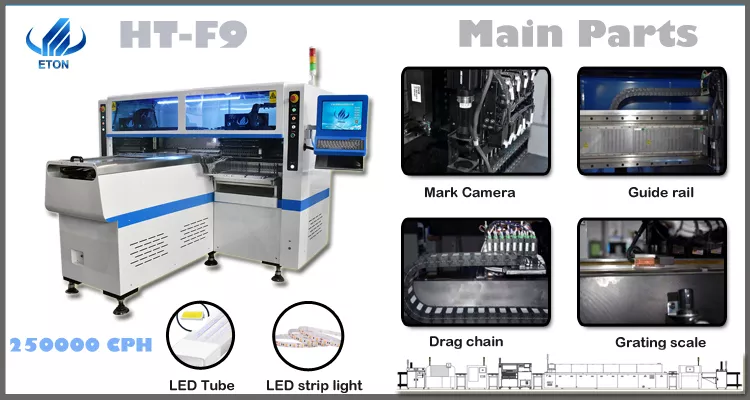

    Advantage of machine

    1. High speed:

    Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously. Producing 4
    types materials at the same time.

    2. High precision:
    High-end magnetic linear motor and servo motor.
    5 PCS cameras, including 2 nozzle debugging cameras, 2 feeder debugging cameras, 1 MARK camera.

    3. Wide use:
    Can products LED tube, panel, 0.5 M/0.6/0.9 M/1 M/1.2 M LED flexible strip and rigid PCB, other types of linear light etc.

    Application products

    200K CPH High Speed Pick And Place Machine HT-F9 LED Strip Light Making Machine

    ETON Company

    SMT Production Line Solution

    We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.


    Excellent service

    FAQ

    1) Do you have oversea after sale service?
    We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
    Abroad, we have India and Egypt office and local engineer, etc.


    2) How is the training?
    After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers
    can't make it through, we also have special one-on-one online training and video tutorials.

    3) It’s hard to use the machine?
    Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.

    4) What machine can I buy from you?
    Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.

    5)Do you have any customers in India? How many machines are there in India?
    Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
