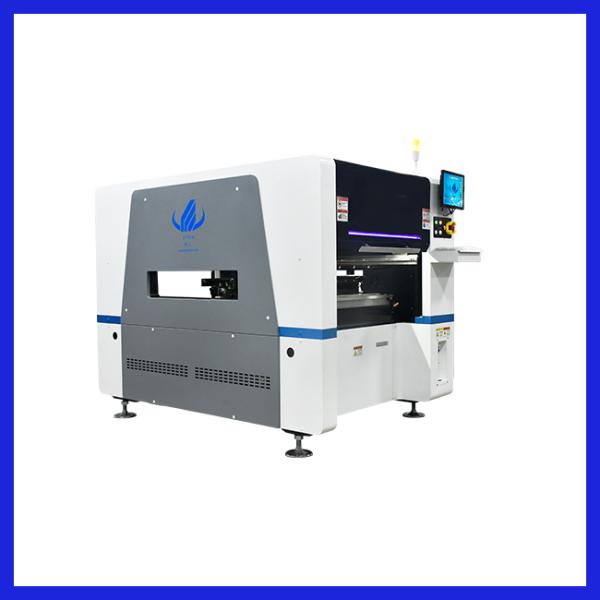

single module 40000PCH multifunctional pick and place machine

Machine features

1. Single module magnetic linear multifunctional pick and place machine

2. PCB length width: max 450*350mm min 80*80mm

3. 2 sets of camera, with high precision recognition.

Machine main part

Frame housing:It supports all the rotary protection machines, all kinds of mechanical and electrical hardware

transmission mechanism:The PCB is delivered to the desired location and transferred to the next machine after the patch is completed

servo positioning system:Support the clip to ensure accurate positioning of the clip

identification system:Identify locations that identify PCB, feeder and component mount properties

various sensors:They are like the eyes of the hall, constantly monitoring the normal operation of the machine

Application

Suitable for Mounting components: LED chip, resistor, capacitor, IC, shaped components,etc.

Company profile

ShenZhen ETON is a manufacturing and process solution provider focusing on R&D, production, sale and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.

It has successful developed a variety of cost-effective SMT high-speed universal placement machines, which are widely used in lighting,LED display, electronics field, power drive,home appliances,new energy and other industries.

Advantages

1. We have ten years experience in this filed.

2. We have local India engineer, can arrange engineers to install,debug and training to you for free.

3. We have office in Mumbai ,New Delhi,Egypt,Turkey,etc.

4. We can provide 1-2 times a year free for machine repair, after the warranty period. And software lifetime free upgrade.

Exihibition

We often participate in exhibition in Delhi, Mumbai, Turkey, Thailand, Pakistan and so on

FAQ

Q:can I pay by L/C?

A: We usually support EXW terms of payment, because L/C is complicated, which will not only prolong the time you receive the product, but also affect the production time of your product.

Q: What service can we provide?

A:1.Free install, debug and train

2.Software free upgrade

3.Maintenance period: 1 year

Q: Do you sell nozzles and spares?

A:Yes, we do sell nozzles and feeders, if you need any spares, just let us know.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
