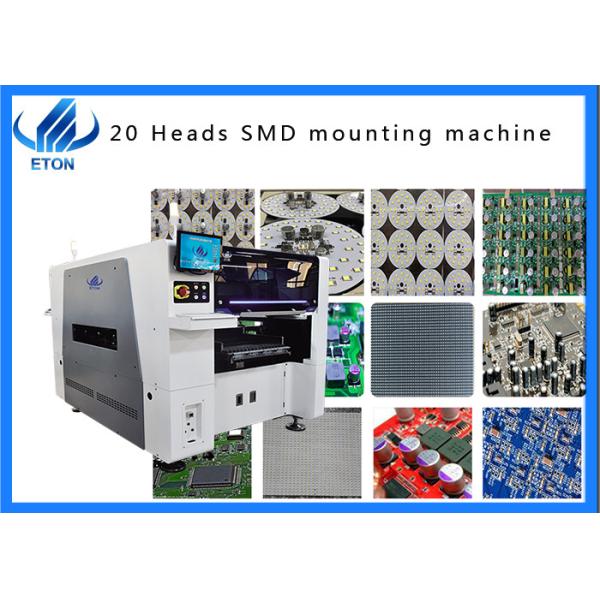

    Minimum mounting 0201 LED CIRCUIT BOARD DISPLAY Mounting MACHINE

    Ask Lasest Price
    Brand Name : ETON
    Model Number : YT202
    Certification : CCC,SIRA,CE
    Payment Terms : L/C, T/T
    Supply Ability : 50pcs/month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Minimum mounting 0201 LED CIRCUIT BOARD DISPLAY Mounting MACHINE

    Minimum mounting 0201 LED CIRCUIT BOARD DISPLAY Mounting MACHINE

    Feauture

    New upgrade pick and place machine, it is using High-end integrated placement head, no need change mounting head and place all SMD components. Non replace modular head


    High precision camera, the camera is using vision alignment, Tri-color lighting technology, could recognition mini components and IC pin


    With automatic PCB board feeding conveyor system, suitable for from 50*50-500*450mm PCB size


    Intelligent electric feeder, support double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component. It can achieve stable, accurate and high-speed feeding.


    The Technical parameter


    1. PCB

    Suitable for max PCB size is 500*450mm, mini size is 50*50mm

    PCB using cylinder clamping, track width adjustable for clamping

    The Rail 1 is fixed but other is flexible

    The PCB thickness is 0.5-4.5mm

    2. Camera
    The No.of camera is 4sets digital camera, head flight vision recognition component, vision alignment, mark correction
    3. Precision
    The repeat precision is ±0.02mm, support for 0201-40*40 IC
    4.Component Range

    Mini 0201-40*40mm package and IC, apply to BGA, CSP etc.

    Max mounting height is 20mm

    5.Mounting speed
    The optical speed is 90000 CPH with 20 mounting heads

    Other machines

    We not only provide mounter, but also printing machine, loading machine, docking station, reflow soldering, transplanter, reflow soldering, etc


    FAQ

    Q:If I buy your product, what can I get?

    A:As long as you buy our machine, we will provide free door-to-door installation (free replacement for any damaged parts within the warranty period), free technical training, 7-day and 24-hour online video teaching, lifelong free software update and other services.

    Q: What is your delivery date?

    A:The delivery date is about 20 days upon the full payment.

    Q: What is your payment terms?

    A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
