Led chip SMT pick and place machine with 20 heads

SMT pick and place machine can mount for 0201-10milliliters package and IC etc. Also can produce down-light,DOB bulb, tube, display etc.

Product Details

Model Number:YT202

Heads:20pcs

Weight:1700kg

Speed:40000CPH

Power:380AC 50HZ

Feeder:20pcs

Core Components:Motor

Brand:ETON

Visual camera:4set of imported camera

Place of Origin:Guangdong, China

Machine function

High precision
XYZ axis drive way is high-end magnetic linear motor and servo motor;
Use a flight identification camera to capture head movements during production, compare programs, and compensate for components.
Mounting mode
Is group picking and separate placing, separate picking and separate placing, it can be applied to the production of a variety of products
High efficiency
Use electronic feeder feeding system, have auto-optimization. The speed reaches 40000 CPH.

Eton after-service

1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.

Product description

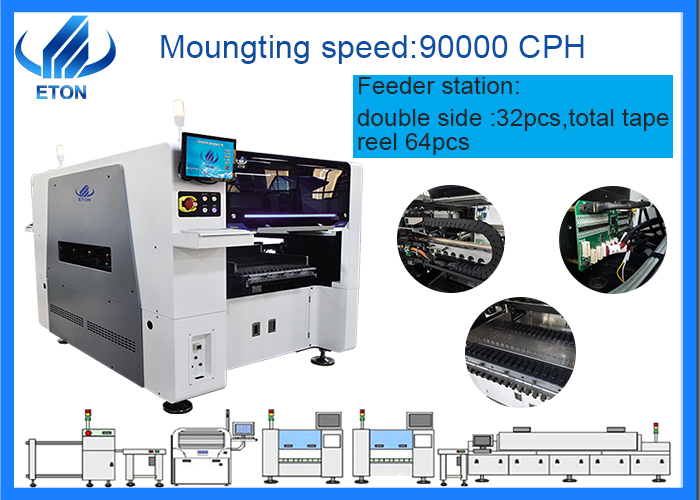

YT202 Picture

SMT Line

We have full range of pick and place machine production line equipment , and have professional suggestions for you to build the production line.

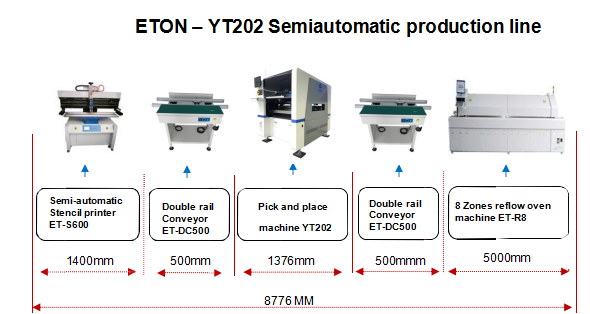

SMT Line reference picture

FAQ

Q: which kind of raw material should i prepared for SMT line?

A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.

Q:Do you have wave soldering machine?

A:Sorry, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.

Q:Can you support whole SMT line?

A:yes, we can provide whole SMT line solution if you want, we are professional in this field.
