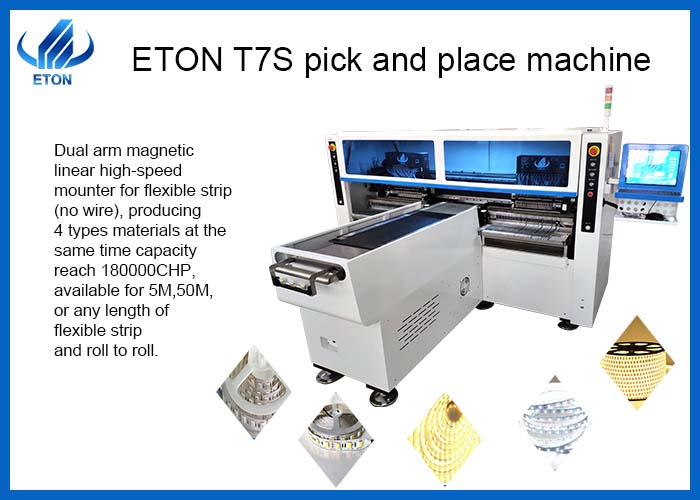

Full-Automatic for any length of flexible strip with 34 Heads Pick And Place Machine

1. Introduction of product

Dual-arm professional high-speed mounter, 2-4 types of materials capacity reach 180000CPH.

Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.

It has 5 sets cameras to work.(vision alignment, mark correction)

Can be mounted include LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers .

Machine System is independent research and development by ETON.

2. Features

Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.

Two mounting module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

Calibration automatically, high precision, available for RGB.

Exclusive patent technology:group to take and group to mount.

The speed can reach 180000CPH.

Vision alignment, mark correction.

3. Machine parameter

4. Product application

5. Company introduction, exhibition, certificate

6. Package and delivery

Shipping Way:
※ By air, for sample and small package

※ By sea, for large package and quantity;
※ Other ways as customer requested.

7. Service

Pre-sale service

Provide suitable production plan

Advise on plant electrical equipment and layout

Sale service

Report machine status in time

Follow up and send test machine video

After-sales service

Engineers can arrive on site to teach operation and debug the machine

24 hours to deal with problems online, arrange engineers to solve problems

Software lifetime upgrade

Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)

8. FAQ

1) Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.

2) How is the transportation?

By sea, by air and land transportation.

3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.

4) What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.

5)Do you have any customers in India?

Yes, we have many big clients in India, Turkey, Egypt and others.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
