High Speed Dual Arm 200000 CPH LED Tube And Flexible Strip Light Pick and Place Machine

Production Introduction of HT-F9 Pick and Place Machine

Dual arm magnetic linear LED high-speed pick and place machine, Producing 4 types materials at the same time, capacity reach 250000 CPH.

68 feeder stations and 68 nozzles.

Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.

Producing with 4 types materials at the same time with high capacity.

Available for board with any proportion of LED chip and resistor.

Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.

Calibration automatically, high precision, available for RGB.

Exclusive patent technology: Group to take and group to mount.

HT-F9 of Technical Parameter

The application of HT-F9 Pick and Place Machine

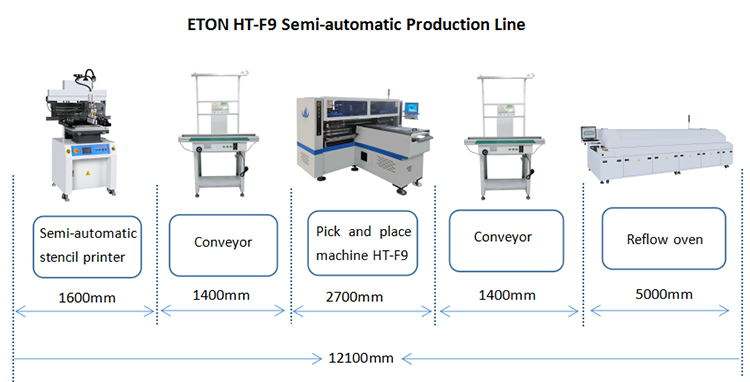

HT-F9 semi-automatic production line

Company Introduction

ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines, which are widely used in lighting, LED display, electronics field, power drive, home appliances, new energy and other industries.

Certification

Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents.

Our after-sales service

We will send our engineer to your factory to install machine and training freely.

We have service office in India,and have Indian engineer in Delhi and Mumbai.

Can support quickly.

Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

Package&Delivery of Pick and Place Machine

Package: Stantard export vacuum water proof package;

Strong wooden package for ensure safely delivery of heavy and large equipment;

Delivery: By air: for small package, worldwide express like DHL,UPS,Fedex,EMS...

By sea: for large package and quantity;

By railway or other ways as customer requested.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
