XYZ Axis 35000CPH Led Pick And Place Machine For Pcb Assembly

Product description

1. Name: Pick And Place Machine
2. Brand:ETON
3. Dimension: 1200*1930*1500mm
4. PCB size: max:400*350mm, min:50*50mm
5. Mounting mode: Group picking and separately placing, separately picking and separately placing;
6. No. of heads: 10PCS
7. No. of feeder station: 32 PCS
8. No. of cameras: 2 PCS, vision alignment, mark correction

Features

High precision:

1. XYZ axis drive way is high-end magnetic linear motor and servo motor;
2. Use a flight identification camera to capture head movements during production, compare programs, and compensate for components.

Mouting mode:

1. It's group picking and separate placing, separate picking and separate placing, it can be applied to the production of a variety of products

High efficiency:

1. Use electronic feeder feeding system, have auto-optimization. The speed reaches 35000 CPH.
2. With 10 PCS heads and 32 PCS feeder station
3. Feeding system is electrical feeder feeding system

Parameter about the RT-1 pick and place machine

Company information

Exihibition

Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:

Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand
Exhibition, etc.;
Domestic: Guangzhou Guangya Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.

Our advantage

1. We provide fulL SMT solution for you;
2. We provide core technology with our equipments;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.

Package and delivery

1. All machines shipped abroad will use foam packaging to protect the machines from collisions;
2. Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
3. Vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
4. Use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
5. Each export machine will be equipped with a strong export-free wooden box;

After services

FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(65.00%),South Asia(18.00%),Southern Europe(8.00%),Southeast Asia(3.00%),Africa(3.00%),South America(00.00%),Mid East(00.00%),Eastern Asia(00.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

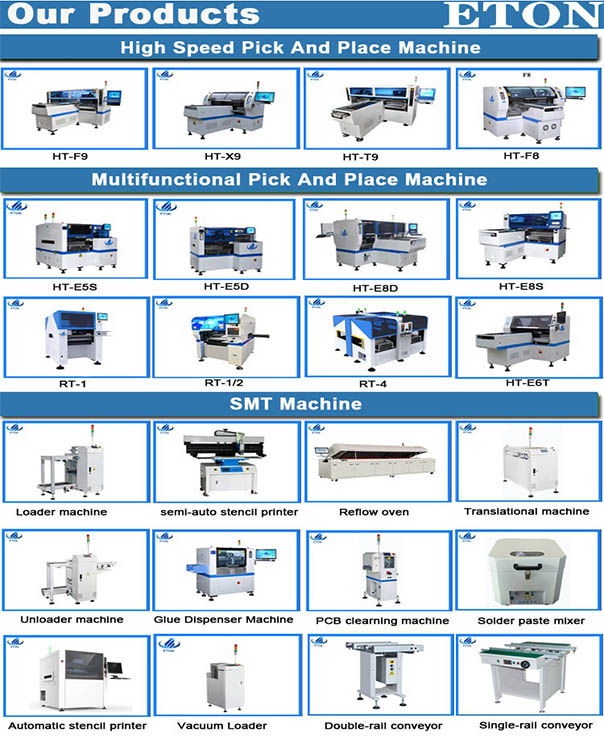

Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine

4. why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
