    High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : RT-2
    Certification : CE,SIRA,CCC,ISO
    Price : EXW USD 50000/sets
    Payment Terms : T/T
    Supply Ability : 50 sets per mouth
    Delivery Time : 30 days after deposit
    • Product Details
    • Company Profile

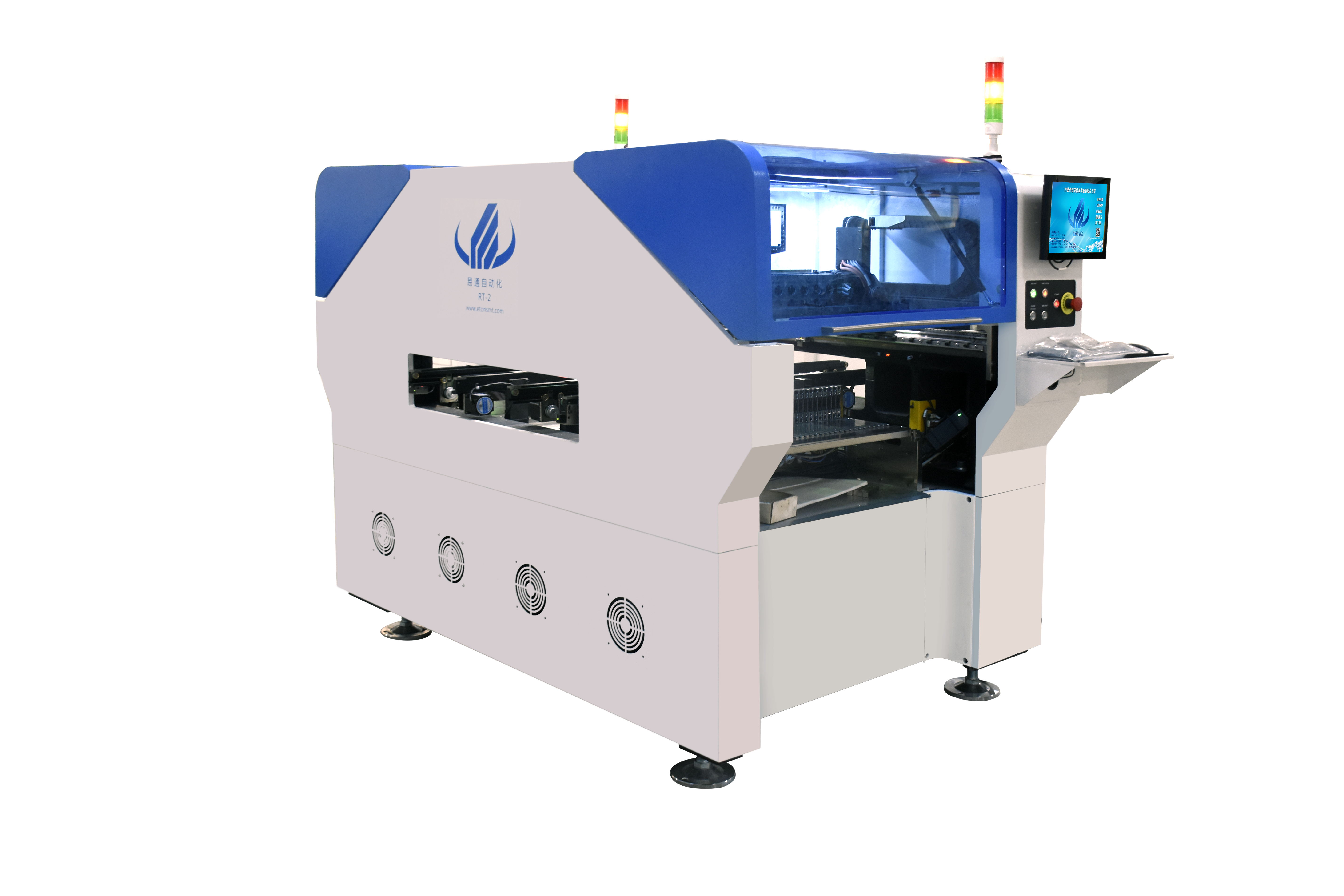

    High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine

    high speed 500mm PCB 0402 smd fastest led bulb making machine led light machine


    Features of smd pick and palce machine

    Magnetic linear motor multifunctional pick and place machine.
    Mounting components: LED/capacitors/resistors/IC/shaped components/etc.


    Exclusive patented technology

    Electronic feeder feeding system.
    Vision alignment flight identifications, Mark correction.
    Auto-optimization after coordinates generated, etc.


    RT-2
    PCBPCB length widthMax:400*300mm min:50*50mm
    PCB thickness0.1~6mm
    PCB clampingElectric clamping
    Mounting mode

    Group to pick and separate to place

    Separate to pick and separate to place

    O.S.systemWindows 7
    softwareR&D independently
    displayTouch screen monitor
    Input deviceKeyboard , mouse

    Vision

    system

    No.of camera

    4 sets of imported camera

    Vision alignment ,mark correction

    Mounting precision0.04mm(repeat precision)
    Mounting height<22mm
    Mounting speed60000~70000CPH
    Components space0.2mm
    Power380AC 50HZ
    Power consumption8KW
    Gas consumption0.4~0.6mpa 300N/min
    Transmission speed>1500mm/sec
    Transmission directionSingle left to right or right to left
    Transmission modeAuto online drive
    Air pressure>5.0kg /cm²
    Electrical controlIndependent research and development by ETON
    X,Y,X axis drive wayServo motor control for X,Y,Z axis
    Feeding systemNo.of feeders station64 PCS
    No.of nozzles20 PCS
    Feeding wayElectric feeder with double motor


    What it can do ?
    Now the LED display LED lights and other products, ETON placement machine can be mounted. LED mounting range is relatively wide, all kinds of LED components, resistors, capacitors, special-shaped components can be mounted. At the same time, we can recommend different models with different speeds according to customers' production requirements.


    What product RT-2 can produce?
    RT-2 pick and place machine suitable led products,such as led light,led bulbs,led tubes,rope light,led flexible strip light,panel light,led display screen,power driver,etc.


    Services
    1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
    2) 24 hours online service and technical support, solve your questions quickly!
    3) Sound company organization and working system, guarantee you a fast delivery!
    4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!


    FAQ

    1,How is your service?
    If you buy our machine,we will send our engineer to your factory to install machine and training freely.
    2,What’s the terms of payment? What about the trade term?
    T/T is OK. You can choose FOB Shenzhen.
    3,How can you make sure we will receive the machine with high quality?
    Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
    4,Is your software interface in English?
    English interface and Chinese interface are both available.
    5,How is the warranty?
    Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
