    250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

    Ask Lasest Price
    Brand Name : ETON
    Model Number : MV250D
    Certification : CCC, CE, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

    250mm Width Smt Conveyor Adjustable Length Double Rails Translational Conveyor

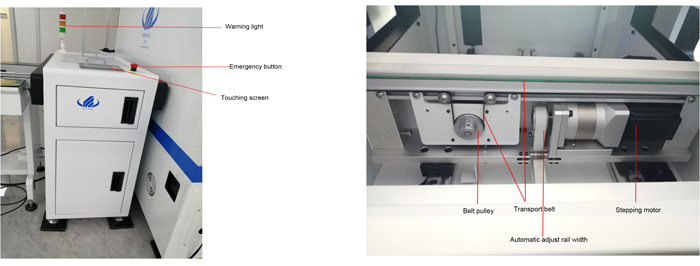

    The features of machine


    • The semi-enclosed design improves the safety protection level;
    • PLC control system, color touch screen operation interface;
    • The position and direction of the access board are adjustable;
    • The width of the track can be automatically adjusted, and the displacement of the track is rotated by a precision screw;
    • It is suitable for the transmission of two lines, large distance, and PCB board.

    Work process
    • The PCB board passes through the board-in rail of the transfer machine to reach the internal translation rail;
    • When the inductor senses that the PCB board reaches the translation track, the stepper motor on the track drives the timing belt, and the timing belt drives the track to the set output position;
    • After reaching the exit position, the belt on the exit track drives the PCB out of the board.

    Parameter


    Product name

    Double translational conveyor

    Model

    MV250D

    Dimension(mm)

    According to the actual arrangement of the production line

    PCB size(mm)

    80*50-(330-1500)*250

    Decentralized and collective functions

    Two in and one out, one in and two out,two in and two out, three in and one out (optional)

    Transport height

    900±20mm

    Transport direction

    Left-Right; Right-Left

    Weight(Kg)

    Determined by specific itinerary and requirements

    Power Consumption

    Single-phase AC110~220V (optional), up to 500 volt amperes

    Excelent services


    1. We provide fulL SMT solution for you;
    2. We provide core technology with our equipments;
    3. We provide the most professional tech service;
    4. We have wealthy experience on SMT factory setup;
    5. We can solve any question about SMT.

    FAQ


    1) Do you have oversea after sale service?
    We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.
    Abroad, we have India and Egypt office and local engineer, etc.
    2) How is the training?
    After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we
    will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers
    can't make it through, we also have special one-on-one online training and video tutorials.
    3) It’s hard to use the machine?
    Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know
    how to make it more intelligent and operate friendly.
    4) How can I buy this machine from you?
    A. Consult us about this product on line or by e-mail.
    B. Negotiate and confirm the final price , shipping , payment methods and other terms.
    C. Send you the proforma invoice and confirm your order.
    D. Make the payment according to the method put on proforma invoice.
    E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
    And 100% quality check before shipping.
    F. Send your order by air or by sea.
