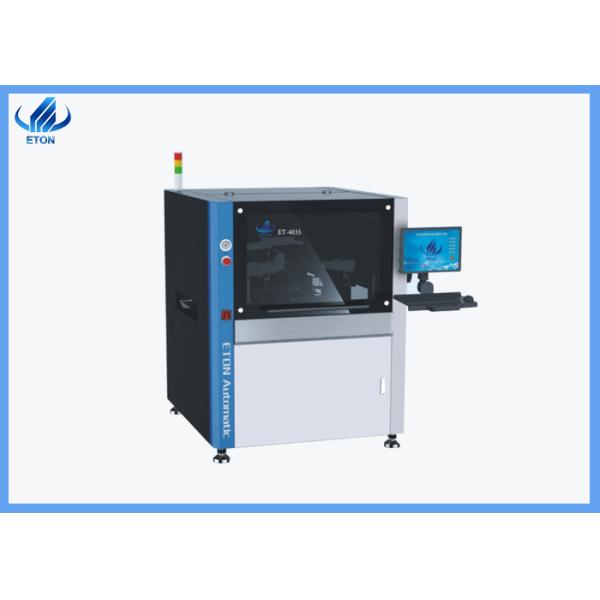

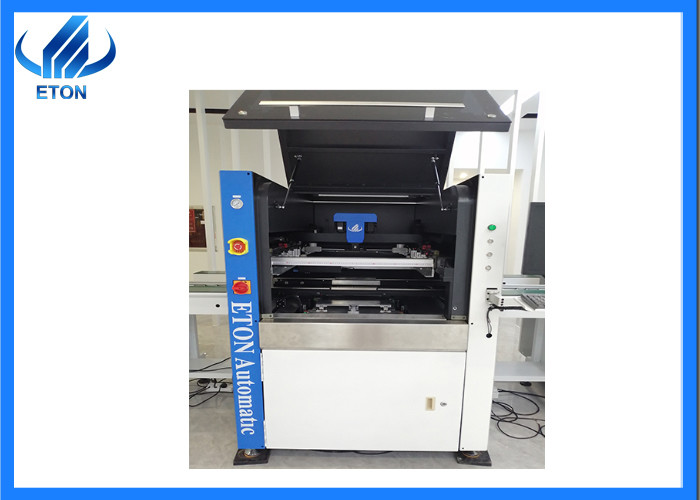

Programmable Smt Solder Paste Printing Machine 400X350mm Pcb Use

Full automatic can print 400*350mm pcb use smt line stencil printing machine

Introduction

ETON SMT vision Stencil Machine can meet the PCB size up to 400mm x 340mm, with many high performance and useful functions, such as the pressure of the front and rear scrapers are individually adjustable; the computer can directly control the adjustment of the guide rail; the cleaning method can be dry or wet or vacuum .

Technical parameter

Features

There are two independent motors to drive the print head;

Downward vision alignment system;

Built-in software diagnosis system;

SMEMA interface;

Standard stainless steel scraper, unique design, improve the service life of the blade.

Company information

Application

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation.

Precautions

Before starting up, add the required lubricating oil (grease) to the oil filling point, lubricating point and oil tank of the machine.

Check whether there is any debris in various parts of the fuselage before starting the machine. You must send a signal (press the safety bell), echo back and forth, and ensure that the area around the machine is safe.

When the machine is running, it is strictly forbidden to touch the moving working surface, repair or wipe the machine, cross-rotate parts, and keep the machine protection device intact.

After the work is over, clean the machine, protect the printing plate, clean the blanket, impression cylinder and cylinder, and turn off the power.

Operation is prohibited by non-staff.

Pay attention

Check whether the surface of the PCB to be printed is complete and free of dirt;

Check whether the steel mesh is consistent with the PCB, and whether the tension meets the printing requirements;

Check whether the steel mesh has blocked holes;

Check whether the solder paste is used correctly.

FAQ

1) Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.
2) How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
