AC220V 50Hz PCB Automatic Stencil Printer Machine For 100m Roll To
Roll
Description of stencil printer
The main function of SMT stencil printer machine: used in SMT
production process of solder paste coating on PCB;The solder paste
coating method of the SMT stencil printer is to print the solder
paste through the template to the Welding plate of the PCB in order
to mount the SMD components to the pcb.
SMT stencil printer machine is not replaced by other equipment, is
the main equipment in the SMT production process.
SMT production process is the solder paste coating, component
mounting, reflow welding, it is the first major process in the SMT
production process.In order to get good printing quality, SMT
presses should have good printing process in addition to good
equipment.
SMT stencil printer machine Configuration
● Programmable suspension printing head;
● Standard stainless steel scraper, unique design, improve the
service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating
system;
● Built-in software diagnostic system;
● SMEMA interface.
Automatic stencil printer of Technical Parameter
Model Item | ET-AL260 |
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm |
| Thickness | 25~45mm |
| FPCB Min Size | 50mm |
| FPCB Max Size | 260mm |
| FPCB Thickness | 0.5~5mm |
| FPCB Warpage | Max. FPCB diagonal 1％ |
| Print head | Two independent motorized print heads |
| Squeegee Speed | 6~300mm/sec |
| Stencil Separation Speed | 0.1~20mm/sec Programmable |
| Cleaning System | Manual cleaning |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy | ±0.01mm |
| FPCB transport over plate height | 20mm |

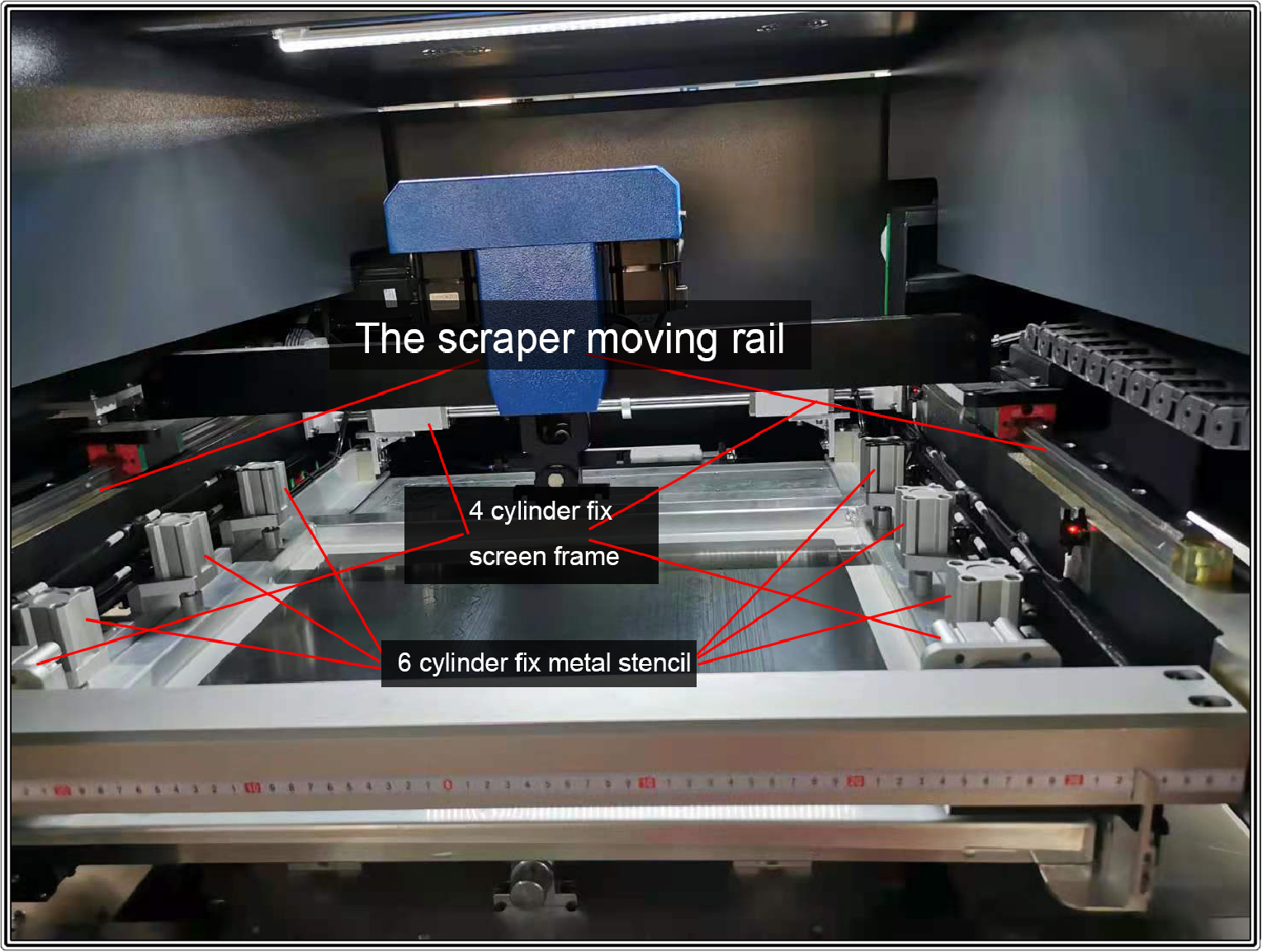

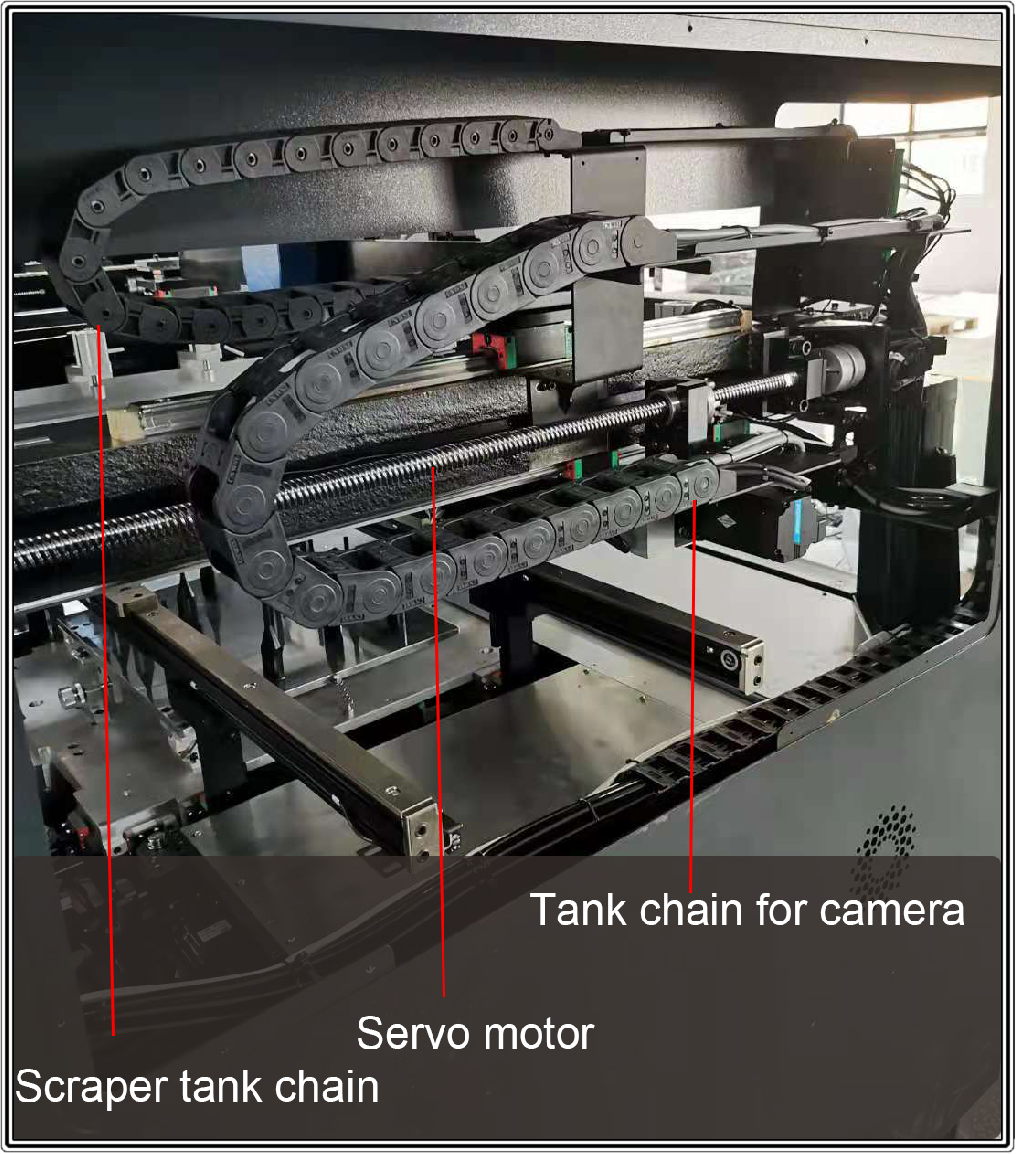

Spare parts of Full automatic stencil printer
100 meters roll to roll production line layout
New technology --full automatic stencil printer for 100 meters
strip light
Achieve 100m light belt automatic production of new breakthrough,
reduce labor costs,
improve production efficiency and production quality.
We can provide a whole production line for 5m,25m,50m flexible
strip light,100m roll to roll.
According to your needs, help you to design the production line
plan.
After Services
Professional sales manager of LED SMT machine, provide professional
suggestion and service to you !
24 hours online service and technical support, solve your questions
quickly!
Sound company organization and working system, guarantee you a fast
delivery!
Design and provide the whole SMT processing lines for you based on
your budget , workshop covering area with best prices!
RFQ
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly
visit customers for use.
Q: What we can do for you?
A: We provide SMT machine,we can aslo provide Production line
scheme and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 25-30 days after receipt of deposit.
Q: What is your payment terms?
A: 30% deposit and 70% balance before shipment.
Q:This machine is easy to use ? if I have no experience, I can also
operate it well ?
A: Yes, our machine is designed to use easily, Normally it will
take you 1 day to learn how to operate, if you are a technician, it
will much faster to learn.
