LED Mounter Pick And Place Machine Automatic Pcb Assembly Line

LED Mounter SMD Machine Pick and place machine

Machine parameter

Length*Width*Height=2700*2300*1550 mm

Weight=1700 kg

Max PCB width *Length=330*1200 mm

No. of camera=5 PCS

Power consumption=6 KW

Feeding way= Electrical feeder with double motor

Machine features

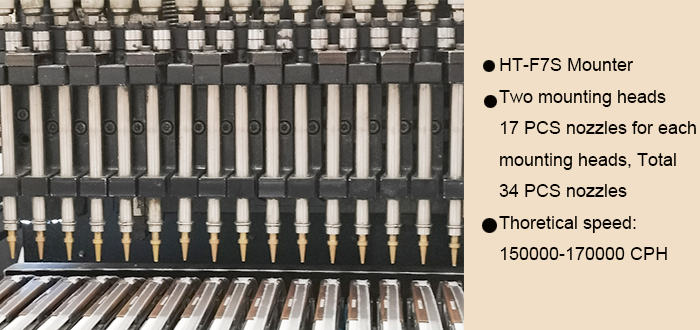

1. F7S is the economy high speed mounter machine, apply to many kind of led module lighting.

2. High speed mounter is professional for mounting led chip/ resistor/ bridge.

3. Support 8mm /12mm/16mm/24mm feeders

4. Support feeder tape and vibrator feeding material

5. Smart, it can automatically identify missing materials, wrong materials, and automatically recognize and compensate

6. Good quality machine part, many parts are import from other countries, all are the top one brand spare part.

FAQ

1. How long of machine warranty ?

A: ETON machine standard warranty is one year. During warranty, any parts need to be repaired and replaced will be free.

2. What other machine do you have ?

A: ETON have many modules, like the pick and place machine, conveyor, stencil printer, reflow oven machine, loader machine, etc

3. Do you have machine factory?

A: Yes, we have machine factory in Jiangxi province, more than 50000 industrial park with more than 300 workers.

4. Do you have foreign engineer ?

A: Yes, we have , like in India, Egypt.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
