Features

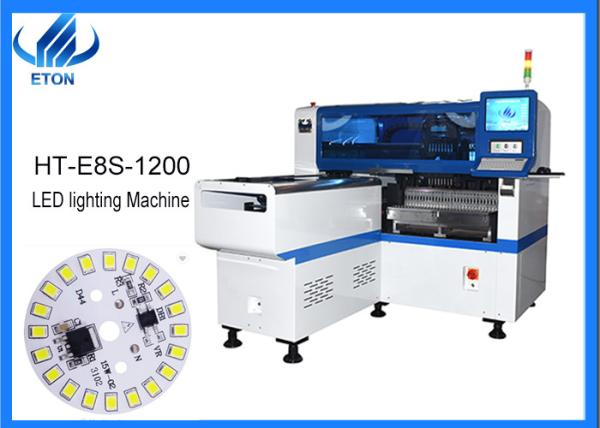

1,The SMT mounting machine is single module equipped with 12 suction nozzles and 28 feeders, each suction head controlled by a servo motor, and the two work together. PCB boards with different angles can be installed, such as the circular state of the light bulb.

2,The PCB board is pneumatically fixed with adjustable pressure, which has the advantages of simple structure, reliable and stable action, large output force, convenient installation and maintenance, and can be fireproof and explosion-proof.

3,Mounting components range: Belt mounted lamp beads, lenses, capacitors, resistors, IC, and various special shaped components. Minimum mounting 0402 elements, maximum mounting range: 15mm.

Parameter

SMT production line

The whole SMT production line machine mainly include Loader machine, full automatic stencil printer, pick and place machine, conveyor , reflow oven, unloader machine

Stencil printer:Put the solder paste on the PCB board

Conveyor: transmission the PCB board to pick and place machine

Pick and place machine:mounting the components on the PCB board

reflow oven:heating the PCB board

Certificates

Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0

FAQ

Q1:What are the factors that affect SMT mounting machine productivity?

A:The factors affecting the production capacity include: the time of entering and exiting the plate, whether the plate is received and delivered in a timely manner, whether the material is delivered in a timely manner, the number of plates assembled, the number of heads used, the type of components, and the number of components.

Q2:Is there any difference between your multi-function SMT mounting machine and a specialized SMT mounting machine?

A: Multifunctional machines can be installed with a variety of products, and special machines are best equipped with linear products such as lamp tubes and light strips. The main reason is the difference in mounting technology. The mounting technology for specialized machines is group to pick and group to place,while the mounting technology for multi-function machines is group picking and separate placing ,separate to pick and separate to stick. This is because the head of multi-functional machines is controlled by an independent motor.

Shenzhen ETON Automation Equipment Co.,LTD. was establised in 2007,possess more than 300 staff at present and cover an area of more than 20000 square meters,is the largest leading manufacturer of high-speed pick and place machine and SMT machine for LED light production and Electronic field,which is also a high-tech enterprise and top brand well-known in China with good reputation.


  ETON invented the fastest automatic pick and place machine with speed 150000CPH,which is the fastest machine in the world,awarded many global first technology patent,also invented the global first machine for any length of 1M 5M 50M 100M 500M flexible LED strip,won large market in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA ETC.


  Since the establishment of the company, with the green and energy-saving development trends of global illumination and rapid development of LED industry and its requests for the manufacturing craft, ETON has seized the opportunity and risen quickly, they have independently researched、designed、manufactured a set of quicker、more stable、more optimal LED fully automatic, high speed, energy-saving chip mounter and multi-function chip mounter, which have been highly recognized in the industry for its absolute advantage in speed, stability and capacity, at the same time, it have solved the offset and fling material issues when producing 1.2 meters, 1.5 meters lamp plates and wireless long FPCB and shaped component at a high speed. ETON has passed ISO9001 quality management system certification and has obtained more than one hundred of patents and certificates, including for utility model, personal invention, software copyright and so on. We have established cooperative relationship with well-known enterprises at home and abroad, such asMLS,OPPLE,NVC,Navigation,PAK,ETI,FSL, Home Lighting,Yangguang Lighting, XSY, Sansi, India RK, India SURYA, Vietnam RANGDONG, Egypt FUTEK etc..

  Our products have been exported to more than 20 countries and regions, including Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Meanwhile, the company has created customer service center, where records every customer and the sale of every set of machine permanently. Its existence can timely solve customer’s questions when using it, which truly provides the convenience and assurance for our customers.

  “High efficiency” “High quality” and “Stability” are the core technology of ETON,technology innovation and strict quality control,with excellent service,ETON has grown into the outstanding worldwide brand of SMT machine with good reputation.
